Huixian Xinda Textile Machinery Accessories Co., Ltd. provides 1511 narrow loom accessories - rear rod support foot C00-1, Shuttle Loom Rear Rod Support Foot C00-1,which is an accessory of loom tension adjustment device. Rear rod support foot C00-1 is composed of C1 support foot cast iron body and A29 iron-based bushing. C1 support foot is divided into left and right hands and installed on loom wallboard P2 to fix the rear rod and properly adjust warp tension.
The difference between C1 and C2 of the tension rear rod supporting foot is that the length of the upper shaft hole is different, the short one is C1 and the long one is C2 (see the figure below). There are oil filling holes above the shaft hole to ensure the smoothness of the rear rod of the narrow loom when twisting. The 28mm inner hole of the two is the same. The shaft hole of C1 is 4cm long, 18.1cm long and 7.5cm wide. The weight of a single C00-1 is 1kg.
The tension adjusting device of Part C of textile accessories includes C00-1 rear rod supporting foot, C00-2 rear beam supporting foot, C00-4 tension sector rod, C00-5 sector brake, C4 connecting rod, C5 adjusting weight rod, C6 adjusting weight, C7 sector rod collar, C8 sector rod mandrel, C9 sector brake rod and other accessories. Gravity adjustment and control are carried out by using the principle of bar and gravity free sag.

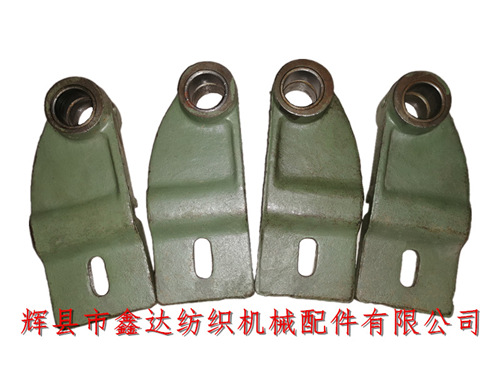

The above figure is the front view and back view of C00-1 tension rear rod supporting foot. If you need to purchase Xinda Textile machinery accessories, 1511 narrow loom accessories, 1511 Textile machine parts, shuttle loom rear rod and textile rear rod supporting foot products, please contact manager Yang of our company!
