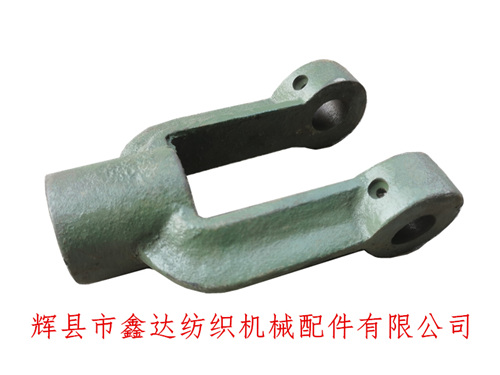

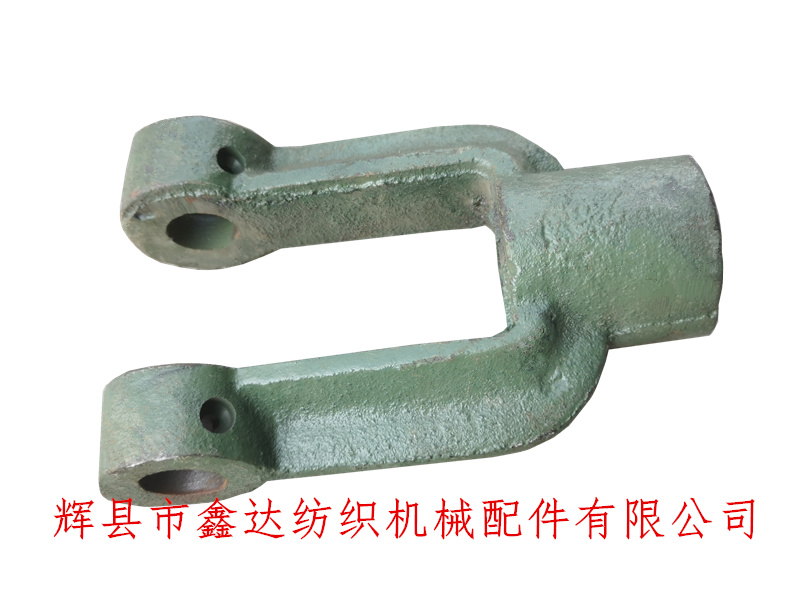

Huixian Xinda Textile Machinery Parts Co., Ltd. provides 56/75 inch multi arm accessories 5133 foot textile accessories cast iron parts. Due to the decreasing inventory of multi arm looms in China, the inventory of 1515 model multi arm accessories has not been replenished, and the products need to be purchased in bulk. The inner diameter of the two ears of the 5133 multi arm foot is 20mm. Install the 5205 rocker pin, and the middle circular hole is used to install the 5132 rocker (length 1390mm, diameter 25mm) with a diameter of 21mm. It moves up and down with the rotation of the pedal shaft, providing power transmission to the multi arm device.
The middle of the 5205 joystick pin is fixed with a T51 lower cross joint, and there are oil filling holes on the periphery of the 5133 ears. T51 is fixed in the middle of the 5133 fork, and the joystick pin 5205 is limited to prevent the pin from disengaging from the 5133 pin.

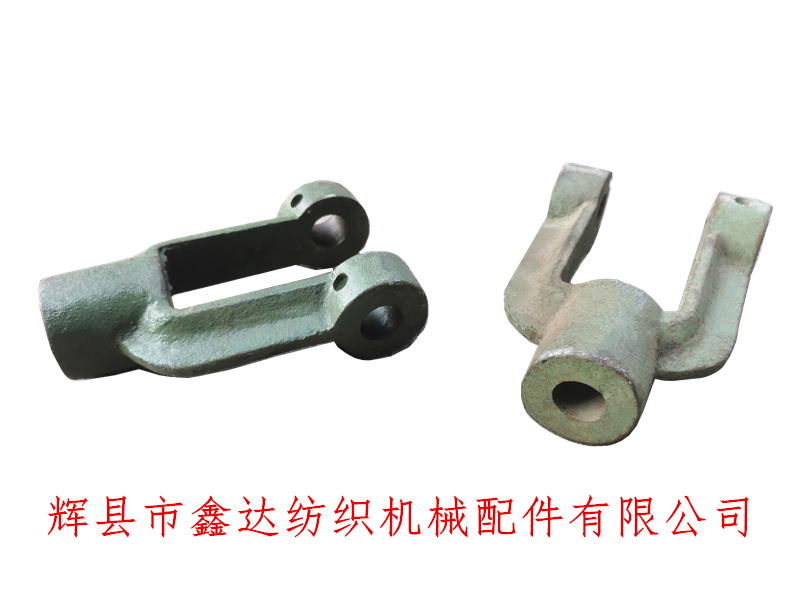

The above picture is a side view of the 5133 pin. It is used once on each multi arm loom, and the support legs of this loom are not divided into left and right hands. The material is HT15-33 (gray pig iron), and during installation, the pin 5133 should be aligned with the center position of the lower cross joint (T51).

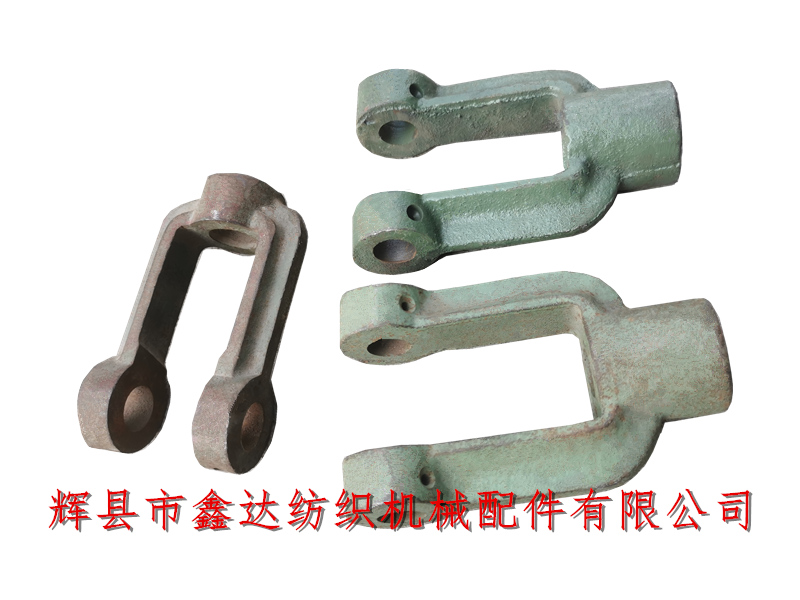

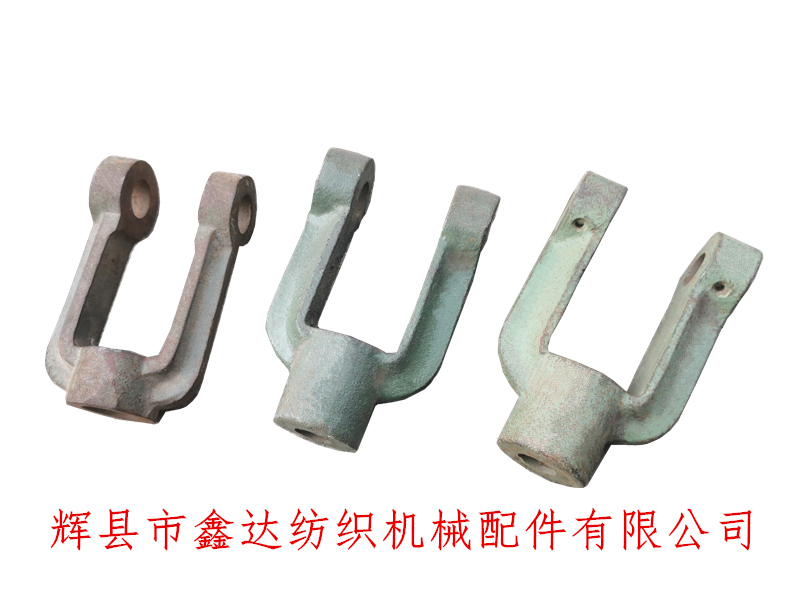

As shown in the above figure, the left side is the 1511 type multi arm accessory T40, and the two on the right side are the 1515 type multi arm pins 5133. They have similar appearances but different heads; The 1511 multi arm joystick comes in various specifications: T41 (straight handle), T131 (curved handle, bending radius R50), T132 (curved handle, R75), T133 (curved handle, R100).
If you need to purchase multi arm accessories, 5133, loom support feet, textile accessories, cast iron parts, or 56 inch/75 inch multi arm accessories 5133 foot textile accessories cast iron parts, please contact Mr. Yang from our company for negotiation.
