Huixian Xinda Textile Machinery Accessories Co., Ltd. provides 1515/GA615 loom wallboard 3400-5/6 rear rod supporting feet all the year round. For a long time, 1515 looms use 3400-5 and 3400-6 rear rod supporting feet (commonly known as rear wallboard), GA615 looms use 4100-5 and 4100-6. The difference between the two lies in iron-based bushing 3439. The following figure shows that the closed round hole is changed into slotted hole and becomes universal. The main bodies of rear rod supporting feet (wallboard) are 3401 and 3402.
The above figure shows the 3400-5 (4100-5) rear rod supporting feet, which form the left and right hands with 3400-6 (4100-6), which are respectively installed on the rear side of the loom wallboard. The material is pig iron ht15-32,; The installation requirements of the wall panel, rear wall panel and rear rod support foot of the loom: the gap between the tension rear rod support foot (3400-5x3400-6) and the tension rear rod 3403 shall not exceed 0.6mm, and the distance from the upper edge of the wall panel (4301x4302) shall be determined by the process specification. The function of increasing the rear wall panel of the loom is to lengthen the length of the warp of the loom on the machine, reduce the opening resistance of the warp, and thus reduce the occurrence of warp breaking.

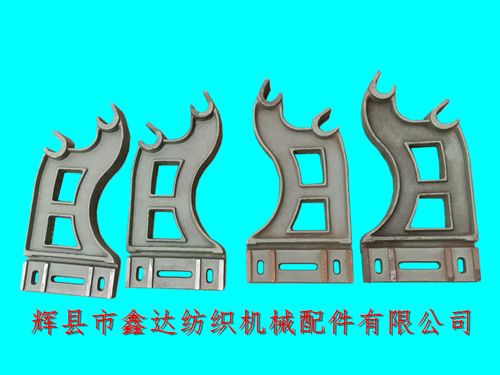

The above picture is the left-hand and right-hand photos of the rear wall panels of 1515 and GA615. The rear part is fixed on the wall panel of the loom by two bolts, and the chute is used to adjust the fixed height of the wall panel. The 1515-3403 tension rear rod is installed on the rear rod support foot. The diameter of the shaft head at both ends of the tension rear rod is 30mm, and the shape is bow, while the tension rear rod used by GA615 loom is a straight shaft with a diameter of 30mm.
The above figure is the side view of the rear wall panel (3400-5x3400-6,Wallboard,Loom Wallboard,Supporting Feet) and (4100-5x4100-6) of the loom. The picture is taken in kind. The usage of each loom is 1. The round hole fixed by the rear rod is transformed into a U-shaped open hole, which solves the non universal problem of 1515 and GA615 looms in this accessory, making installation and disassembly more convenient.
Textile mills, weaving workshops, cotton mills,Wallboard, Loom Wallboard,Supporting Feet, canvas processing plants, if you need to purchase textile accessories -1515/GA615 loom rear wall panel 3400-5/6 rear rod support products, please contact Mr. Yang of our company for details. The default minimum order quantity is 5, and the delivery time is about 5-7 days. Welcome textile enterprises in all regions and cities to discuss cooperation.
