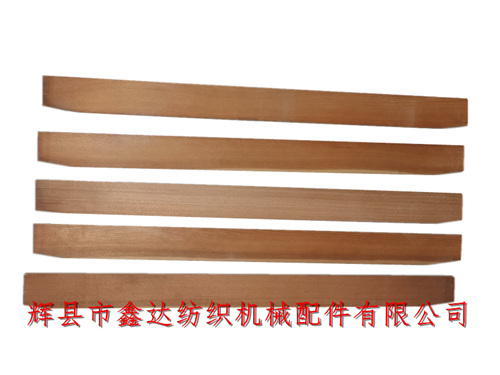

Huixian Xinda Textile machinery accessories supply textile wood parts, shuttle loom Lifting heddle plate Q16/3105,Q16 Lifting heddle plate used in 1511 44 inch is 68.7 cm long, 51 mm wide (56 inch is 1.04 m) and 1.2 cm thick,Lifting Heddle Plate Q16/3105 Of Textile Wood Parts,The lifting heald plate (3105) used in 1515 56 inch loom is 1040mm long, and the lifting heald plate used in 75 inch loom is 1.5m long. Their other parameters (width and thickness) are the same.
The heald hanging board used by old-fashioned weaving machines is generally processed from Larch (pine), with flat and smooth surface and slope shape at both ends. Rules for the use of heald lifting board Q16/3105 of shuttle loom for textile wood parts: the length of heald lifting board used in 1420mm loom is 1116mm; The length of 3105 used in 1500mm door loom is 1219mm; The 1600mm loom uses a heald hanger with a length of 1320mm.
Their packaging is generally 20 pieces/bundle. The principle of the heald lifting parts of the loom is roughly the same.Jack Stick Q16/3105 Of Textile Wood Parts, It is mainly used to cooperate with the tread plate to control the opening in the weaving process of the loom. The heald lifting plate Q16/3105 of the woven wood woven loom is a necessary moving part for the operation of the electric loom.
Textile wood parts and loom wood parts are generally formulated with the part number code starting with Q on type 1511, while type 1515 is set with four Arabic numerals. Under normal circumstances, they only increase the length with the change of loom door width, and shaft products are designed with bold.
When purchasing textile hanging heald board, textile wood parts, loom wood parts, loom heald frame wood parts and other products, please contact Mr. Yang of our company for consultation. We will provide detailed product parameters, detailed pictures and prices.
