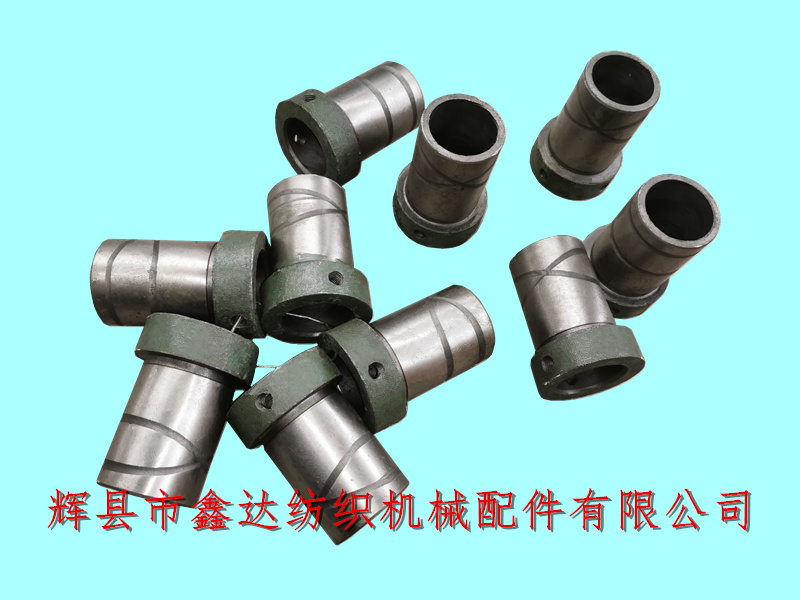

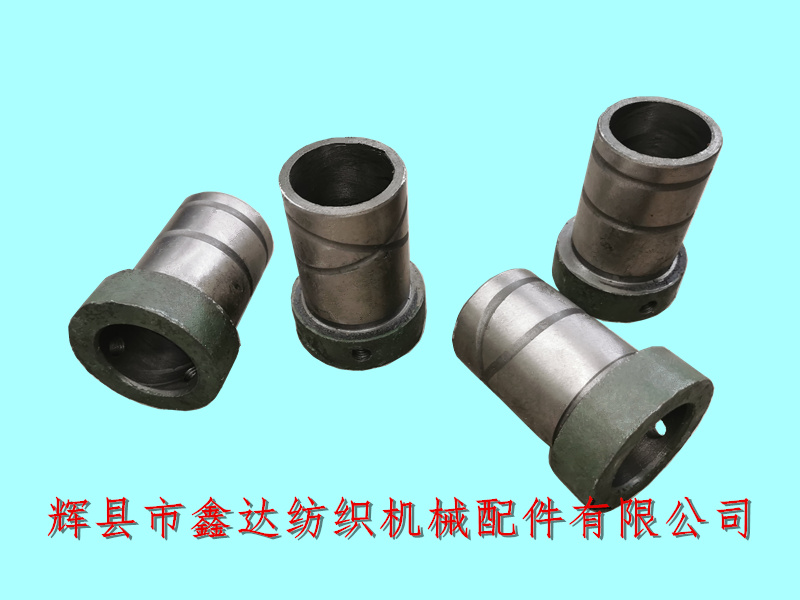

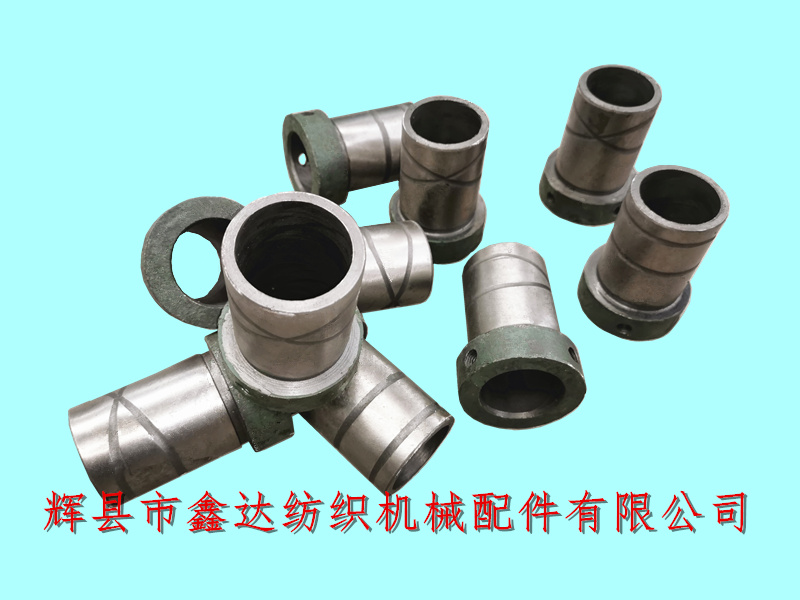

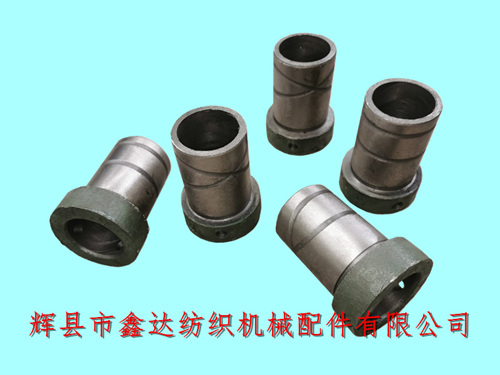

Huixian Xinda Textile Machinery Parts Co., Ltd. sells the support foot sleeve (without expansion joint) for the 1515-E6 weaving machine tread shaft.1515-E6 Tread Shaft Sleeve Textile Parts, The weaving machine tread shaft sleeve E6 is divided into Type A and Type B. Type A has a bottom circular truncated position without expansion joint and is fixed with head screws, while Type B has a bottom expansion groove and is tensioned with hexagonal bolts. The outer diameter of their green base is 65.7mm, the base height is 22.5mm, and the horizontal length is 80.5mm; The total height of the pedal shaft sleeve E6 is 92 millimeters.
The A-type E6 is connected to the tread shaft 3301 and the middle support foot E5 on the 1515 loom, with a usage quantity of 1 per trolley. The wear clearance between the tread shaft middle support foot and the sleeve is not more than 0.4mm for large flatbed and 0.6mm for small flatbed.
Each sleeve has two head screw holes, and the size of the head screw used is M10 * 15, made of HT15-33 (gray pig iron). The polished surface length of the sleeve is 92mm, and there are two intersecting oil line grooves on the surface. The diameter of the middle inner hole is 42mm and the outer diameter is 52mm.
If customers in various cities need to purchase 1515-E6 Tread Shaft Sleeve Textile Parts,textile sleeves, loom tread bushings, textile machine accessories, 1515 sleeves and other accessories, please contact Mr. Yang from "Xinda Textile Machinery Parts" for consultation. Packaging for sleeves: 5 pieces/string, minimum order quantity: 1 piece.
