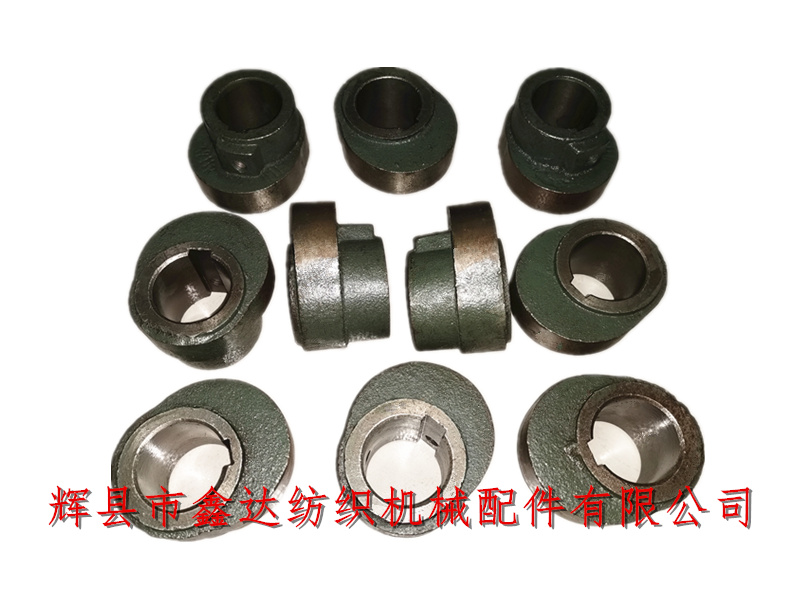

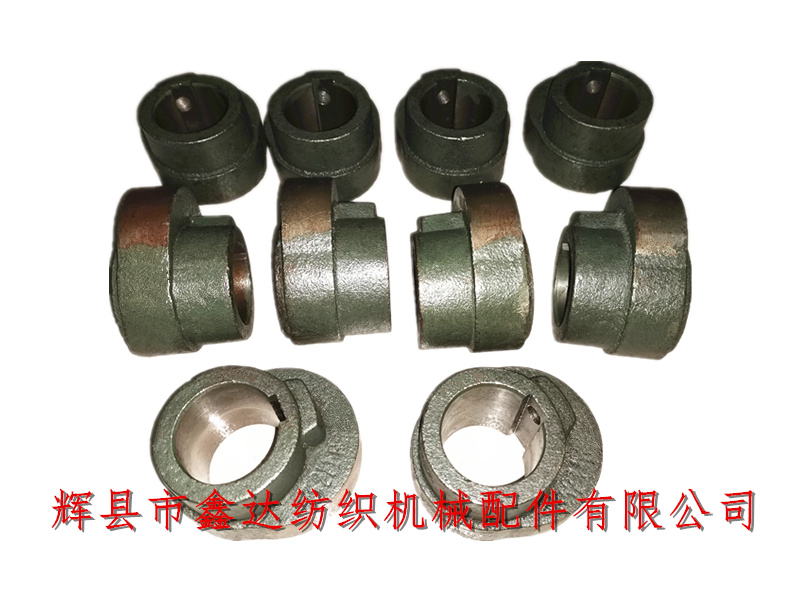

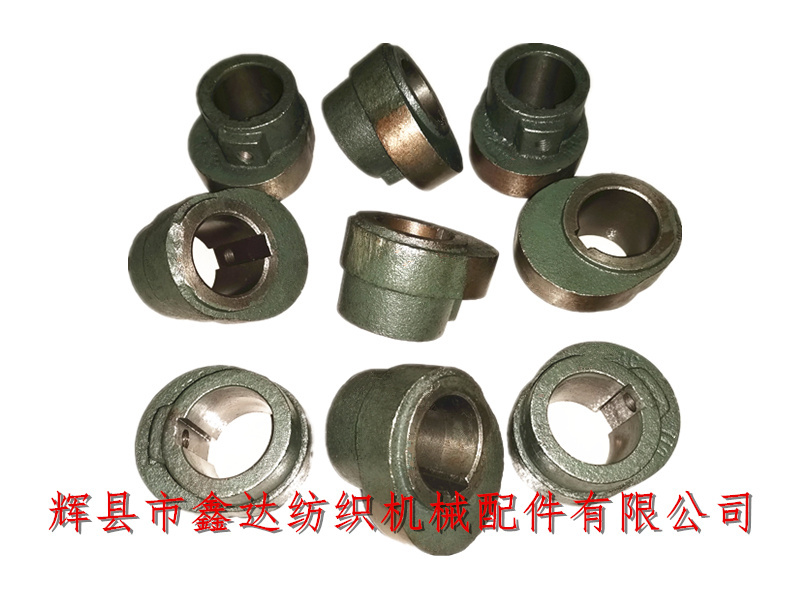

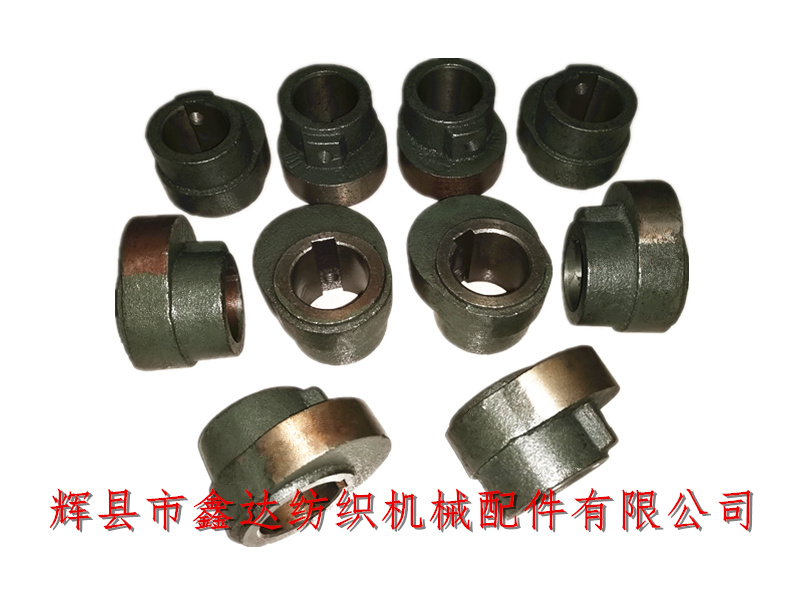

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides 1515-56/75 loom parts 3211 crankshaft cam. The material of loom cam 3211 is HT15-33 pig iron, which can be divided into left mobile phone and right mobile phone according to the direction of cam deflection. The diameter of the middle inner hole is 40mm, the width of the keyway is 12mm, and the depth is 2.5mm; The overall length of the cam is 83mm, the width is 70mm, and the total height is 49.5mm. The polished surface width of 1515 loom parts 3211 crankshaft cam is 23mm, the table height is 23.5mm, and the side tightening screw hole is M10, which is located above the keyway.
Loom cam 3211b is applicable to 1515 56 inch and 75 inch looms, and GA615 looms can also use this cam. The weight of a single 1515-3211 cam is about 0.65 kg, 10 in each string, and the tolerance fit of the intermediate shaft hole is +0.1-0.2mm.
3211 installation and use requirements: the abrasion of the large radius of the loom crank shaft (bending shaft) cam 3211 shall not exceed 1.6mm, and the surface grooving shall be corrected. The abrasion of the keyway shall not exceed 0.3mm. The head screw should be lower than the large radius of the cam, and the journal is not allowed to crack.
Shuttle loom accessories include 1511, 1515 and GA615 loom accessories, some of which can be borrowed from each other and belong to general accessories. Other accessories are similar in appearance, with the difference in length, outer diameter, etc.
Our company is a supplier of 3211 crank shaft cam of 1515-56/75 loom accessories, and has long provided 1511, 1515, GA615 all kinds of loom accessories, loom cam, 1515 accessories, 1515 cam, crank shaft cam. If you need to purchase this product, please contact Mr. Yang of Xinda Textile accessories for consultation.
