Textile Hardware And Tools
Special Yarn Guide Screw For Wood Shuttle
Special Yarn Guide Screw For Wood Shuttle time:2022-08-09 10:58:24 click:6411 keywords:Yarn guide screw,Special Screw,Wood shuttle Screw
description:

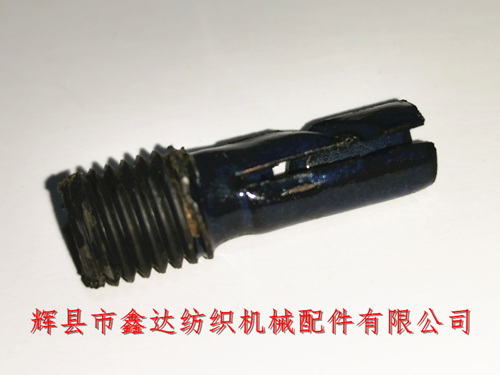

Huixian Xinda Textile Accessories Co., Ltd. provides Special Yarn Guide Screw For Wood Shuttle,special-shaped bolt yarn guide screw and yarn guide seat for wood shuttle of 75 loom. The total length of the yarn guide screw is 28.7mm, the head thread is M10, and the side is provided with a slotted slot. It is used for disassembly and assembly. The yarn guide seat is long and hollow, with an internal diameter of 3.5mm; There is a yarn guide hole with a diameter of 2.5mm in the middle, which is connected with the semi-y-shaped cutting groove. The outer diameter is about 7.7mm. The position of the yarn guide hole is flat, with an outer dimension of 6.3mm and a length of 16mm. The number of shuttles used is 1.

Textile hardware accessories shuttle yarn guide screw

The thread guide screw is often used on the textile wood shuttle. The width of the front slot is about 2.2mm, and the inner width of the rear slot is about 1.4mm; Although the wooden shuttle is divided into left-hand shuttle and right-hand shuttle, the yarn guide screw (yarn guide seat) is not divided between left and right.

Shuttle accessories (textile yarn guide)

75 weaving machine wooden shuttle uses special-shaped bolt thread guide screw thread guide seat. The use method: the weft yarn is inserted through the semi-y-shaped slot, and then guided through the circular hole. There is a horizontal slot on the side of the shuttle that is connected with the upper arc-shaped slot. It is commonly used on the towel wooden shuttle.

Towel shuttle_ Wood shuttle accessories_ Yarn guide screw textile equipment

The blue mark in the above figure is the position where the yarn guide screw is installed. The horizontally installed black yarn guide screw can be seen through the flat hole. This design is also to prevent or reduce weft shrinkage and reduce weft hairiness into the cloth.

Weaving shuttle accessories_ Profiled yarn guide seat_ Textile accessories

Xinda Textile accessories has been engaged in the sales of shuttle textile accessories for more than 20 years. It has more kinds of loom accessories, various textile equipment, and has experience in processing and customizing shuttle loom parts. If you need to purchase shuttle accessories, wood shuttle screws, wood shuttle of loom, yarn guide, yarn guide seat and other products, please negotiate with Mr. Yang of Xinda Textile accessories!
