Huixian Xinda Textile Machinery Accessories Co., Ltd. provides 1515 Heavy Hammer For Regulating Rod B65, 1515 textile accessories B65 loom heavy hammer (let off adjusting rod). There is a let off adjusting rod in the shuttle loom. The shape of the heavy hammer B65 is 87mm long and 72mm wide, the length of the inner cavity of the heavy hammer is 71mm and the width is 12.4mm. The adjusting rod C34 or 3416 passes through the middle, and the upper ear is lifted by C33.
Textile accessories B65 loom weight can be installed on 1511 (44, 56 inch), 1515 and other models of internal let off looms. There are two M8 screw holes on each side, so there are no left and right hands. The screw holes are used to fix in the middle of 3416 or C34 adjusting rod.

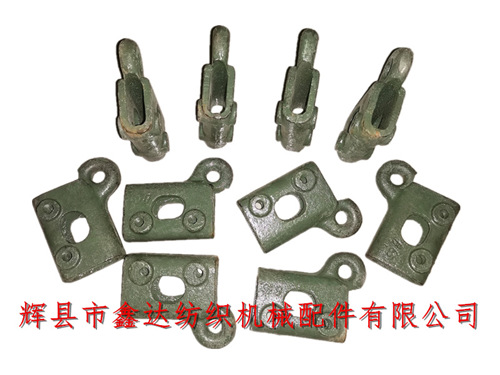

The above figure is a side view of B65 loom hammer (let off adjusting rod,Regulating Rod). The material is HT15-32 (pig iron), the color is green, the diameter of the round hole at the ring ear is 11mm, the weight of a single accessory is about 0.3KG, and the quantity of each loom is 1.
1515 the abrasion of textile machinery part B65 is no more than 2.5mm (at C33 of the let off moving rod). The faults of the let off device of the loom are mainly manifested in poor let off self-locking function and sluggish or uneven rotation of the let off shaft. These conditions are the root causes of defects such as sparse and dense road, cloud weaving and warp shrinkage.
56 inch textile accessories, 56 inch inner let off loom heavy hammer, 1515 let off adjusting rod and other accessories are early inner let off accessories. The thickness of B65 heavy hammer is 30mm and the height of adjusting rod fixing screw hole table is 3mm. If you need to purchase the accessories of old-fashioned loom, please contact our company's customer service for consultation!
