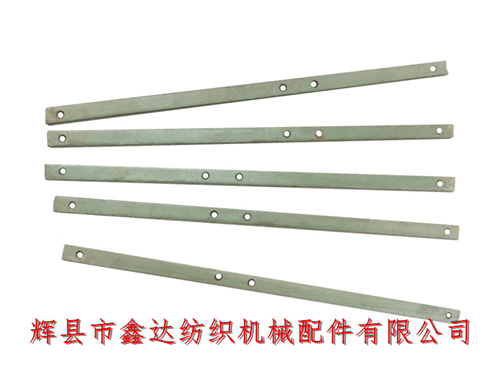

Huixian Xinda Textile Machinery Parts Co., Ltd. provides spare parts for textile warp feeding flat iron G1515 weaving machines, Adjusting Rod, The material of the warp feeding flat iron is steel 20, and there are four circular holes with a diameter of 8mm on the flat iron. The middle two circular holes are fixed warp feeding adjustment rod heavy hammers (with a distance of 40mm between the two holes), and the distance between the two circular holes is 45.5cm. The total length of the warp feeding flat iron is 49.8cm, installed below the weaving machine. Each G1515 weaving machine uses one flat iron.

The above picture shows the front and side views of the flat iron used for warp feeding. The width of the flat iron is 18mm, the thickness is 5mm, and the color of the flat iron is green, which is the same as the color of the weaving machine. It belongs to the hardware components of the shuttle weaving machine.

One end of the warp feeding flat iron of the weaving machine is connected to the core shaft in the foot groove of the warp feeding adjustment rod, and the other end is connected to the serrated wheel support rod (B22). The movement direction of the warp feeding flat iron of the weaving machine is: the rear moves up and down, and the front moves horizontally.

The above figure shows the distance between the holes of G1515 through the flat iron. The packaging for the warp delivery flat iron of the weaving machine is 10 pieces/bundle, with a minimum order quantity of 1 piece. If various weaving manufacturers and private fabric processing factories need to purchase weaving machine flat iron, warp delivery spare parts, weaving machine spare parts, warp delivery flat iron and other products, they can contact Mr. Yang from our company for consultation.
