Huixian Xinda Textile Machinery Parts Co., Ltd. has been supplying G1515-3108/3109 reed clamp shaft support legs for GA615 looms for a long time. The 1515 looms use 3243 (K4) and K3, and the external dimensions of the reed clamp shaft support legs 3109 for old looms are a base length of 148mm, the inner diameter of the front circular hole is 20mm, and a bolt for installing K40 safety spring rod; The diameter of the rear inner hole is 25mm, which is connected to the K5 sleeve for use.

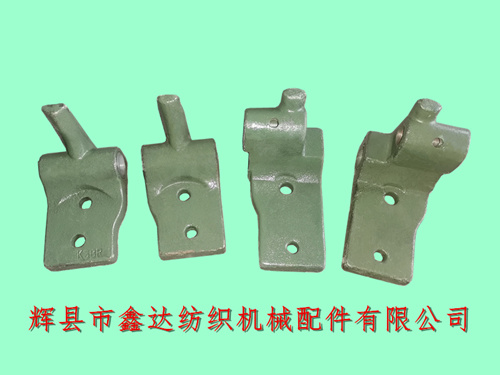

The above picture is a side view of G1515-3109. The reed clamp shaft support feet are divided into left and right hands. The 1515 type 3243 is connected to the old loom reed foot K2, and the GA615 type loom support foot 3109 is connected to the 3101 reed foot (shuttle side).

On the right side of the picture is the G1515-3108 reed clamp shaft support foot used in GA615 weaving machine. The gap range between it and the reed clamp shaft sleeve (K5) is 0.4mm for major repairs and 0.5mm for minor repairs.

The quantity used for each weaving machine is: 1 piece each for 3108 and 3109. The length of the bottom surface of 3108 is 128mm, and the nylon bushing allows for an increase of 0.1mm; The stop of the reed clamp shaft support foot 3109 should match the stop of the reed seat foot, with the bottom plane firmly seated and the upper plane not higher than the protruding plane of the reed seat foot.

Packaging method for G1515-3108/3109 reed clamp shaft support foot old fabric machine accessories: 5 pieces per string; If cotton mills, textile processing enterprises, and weaving factories need to purchase GA615 reed clamp shafts, G1515 reed clamp shaft support feet, old fabric machine parts, 1515 fabric machine accessories, and other products, please contact Mr. Yang from our company!
