Huixian Xinda Textile Machinery Accessories Co., Ltd. provides 1511 textile machine accessories - Automatic Loom Parts N3 Propulsion Arm. There are shuttle loom parts N3 propulsion arm. The textile machine support foot products are divided into left hand and right hand. It is 1511 automatic shuttle change accessories. The inner diameter of the fixed hole of the propulsion shaft N9 is 25mm, the keyway is 8mm, the total length of the propulsion arm is 17.5cm, the upper inner width is 16mm, and N4 slider connecting rod is installed, The diameter of the inner hole of the pin shaft is 10.2mm.

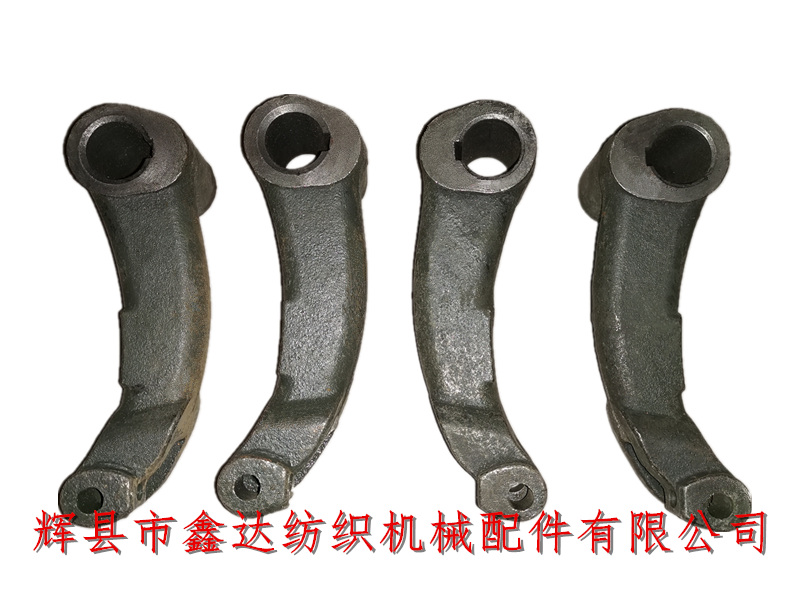

In the figure above, the length of the push shaft hole is 57mm, the set screw hole above the connecting rod mandrel is M8, and the arm thickness of textile machine part N3 is 22mm. The yuan lathe processes two shaft holes and keyways. The weight of a single N3 push arm is 1.05kg and the material is HT15-33 gray pig iron.

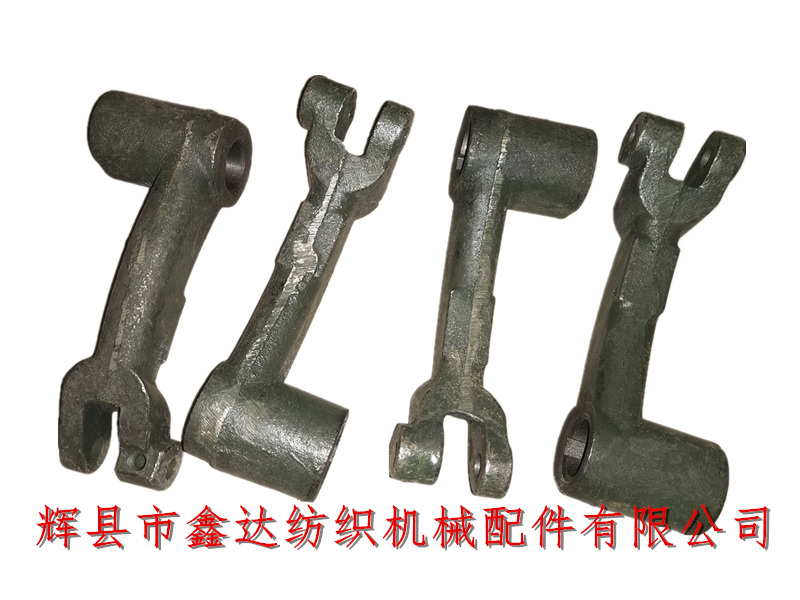

The above figure is a side photo of N3 propelling arm, with N3R right hand on the left and N3L left hand on the right. If the propelling arm N3 is damaged or the key is loose, the shuttle pushing force will be small and the automatic shuttle changing device will be abnormal.
During the installation of N3 textile machinery accessories, attention should be paid to its flexible rotation and the tolerance fit with the propulsion shaft and connecting rod. Automatic loom, loom parts, propulsion arm,If you need to purchase 42 inch automatic shuttle changing accessories, 44 inch loom parts, single beam 56 inch propulsion arm and other products, or know the detailed parameters, price and other information of N3, please contact our company!
