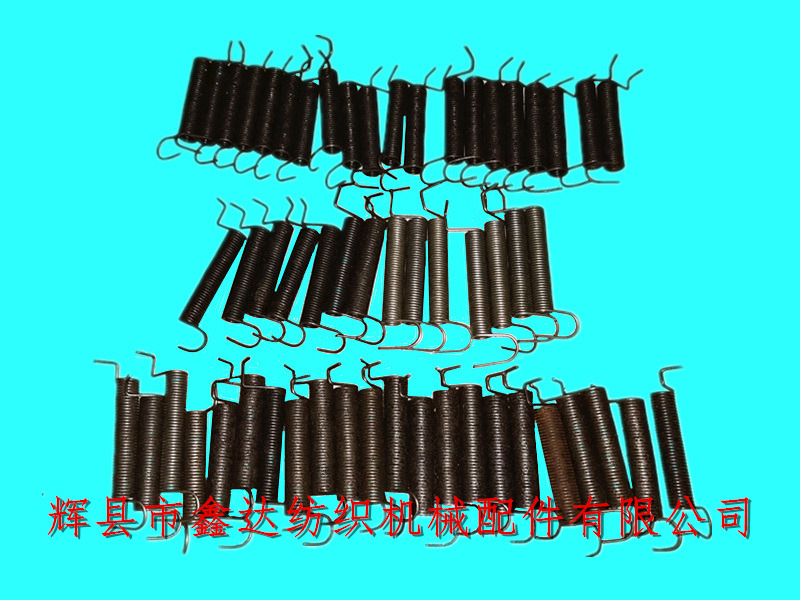

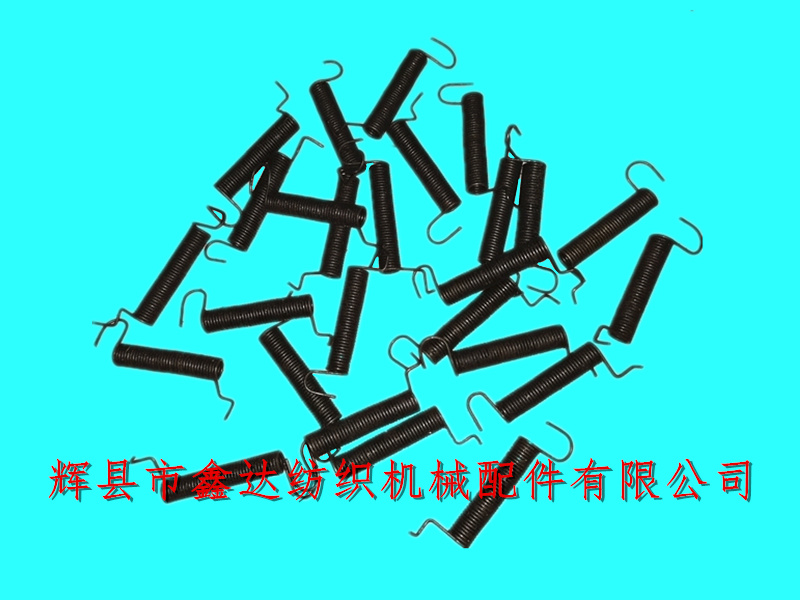

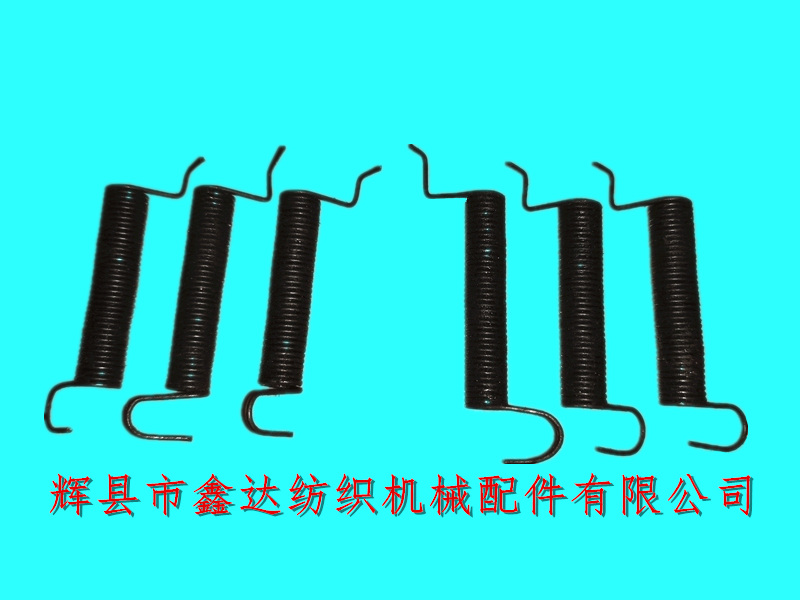

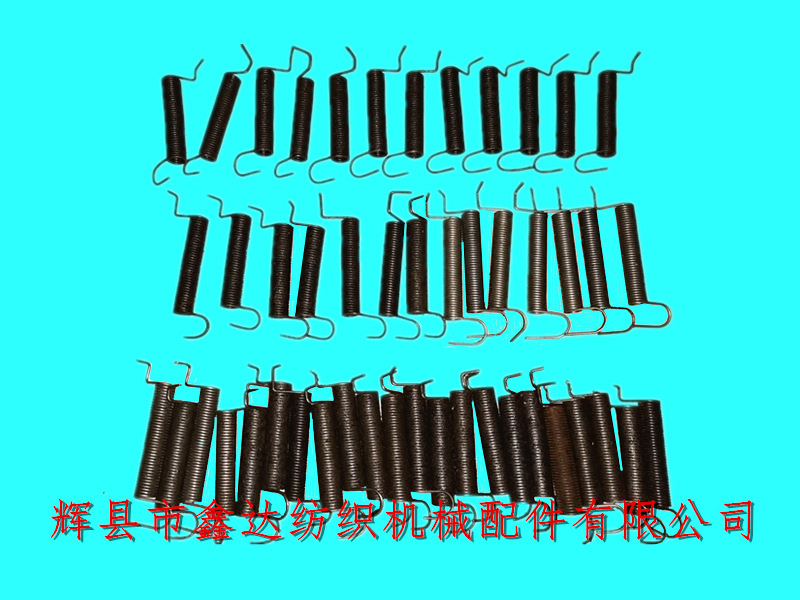

Huixian Xinda Textile Machinery Accessories Co., Ltd. has long provided shuttle textile machinery accessories J33 cross spindle spring loom hardware torsion spring. J33 cross spindle spring is processed from spring steel wire II (diameter 1mm), which is divided into left hand and right hand, and is installed on the J22 cross spindle of the loom. The total length of J33 spring body is 55mm, the outer diameter of spring is 8mm, the length is 38mm, and the inner width of semi-circular hook on one side is 7mm, The press hook with an inner width of 6mm on the other side is formed by two 90 degree bends.
J33 cross spindle spring is a general component of loom, which can be installed on automatic looms of models 1511, 1515, GA615, etc. the crank shaft (loom bending shaft) is dead center in the front, the shuttle is on the switch side, the large radius of weft cam E4 is forward, and the gap between J22 cross spindle and J28 cross spindle hook is 0.2mm. It requires flexible movement and moderate spring force. The tolerance of the rung is 0.4mm, and the abrasion of the head is not more than 0.4mm.
The spring J33 of the loom is packed in self sealing bags, with 100 pieces in each bag, which are of the same hand. The distinction between the left and right hands is judged according to the winding direction of the spring steel wire. The accessories of part J of the loom are induction shuttle changing devices used to assist in automatic shuttle changing. They are self-contained and play an irreplaceable role in the work of the full-automatic loom.
When installing J33 on the loom, it is necessary to pay attention to: put the probe J27 in the action position, the bell shaped curved arm J23 and the front side of the auxiliary connecting rod J24 wholeheartedly, so that the distance between the cross spindle J22 and the upper plane of the cross spindle hook J28 is 0.2mm, and then put the cross spindle spring J33 on the outer end of the cross spindle, so that one end of the spring is hooked with the supporting foot, and the other end is hooked with the cross spindle tightening ring.
In order not to stab the yarn, the elasticity should be as small as possible under the condition of ensuring that the probe slides back and forth flexibly. If you need to purchase shuttle textile machinery accessories, J33 cross spindle spring, loom hardware torsion spring and loom spring accessories, please contact Mr. Yang of Xinda Textile accessories company for details!
