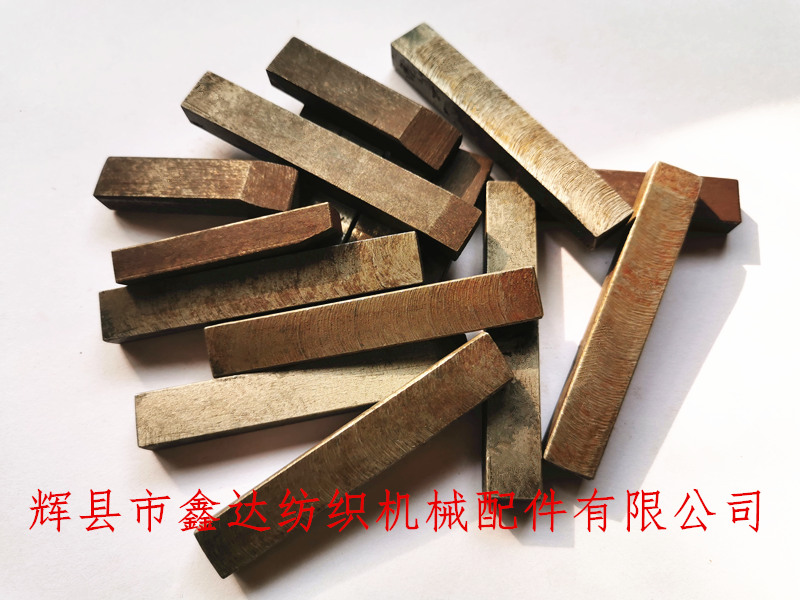

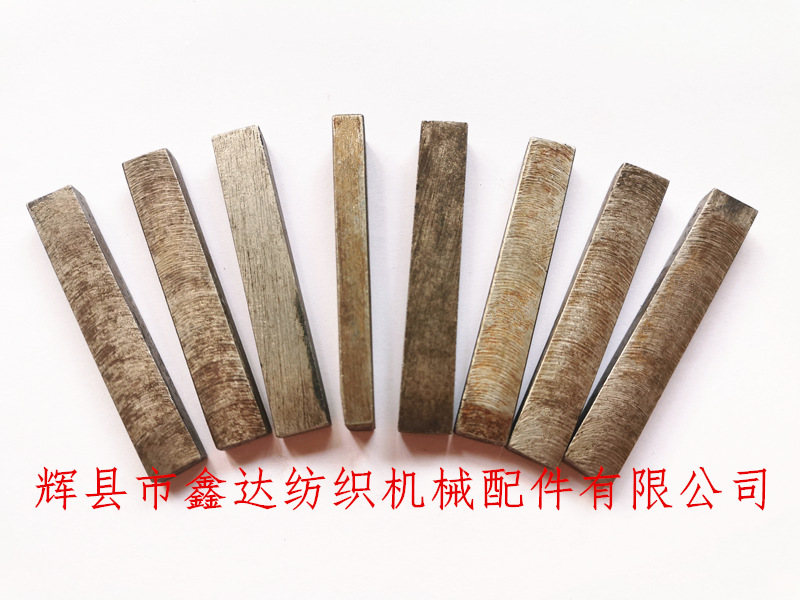

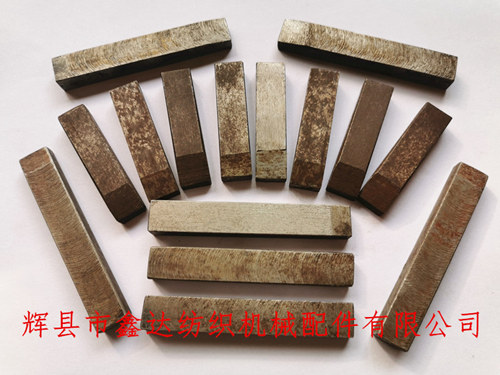

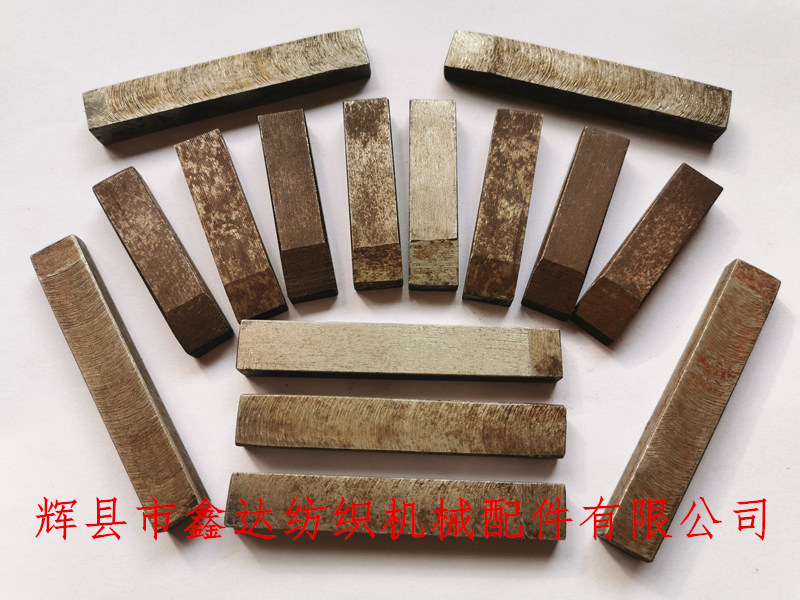

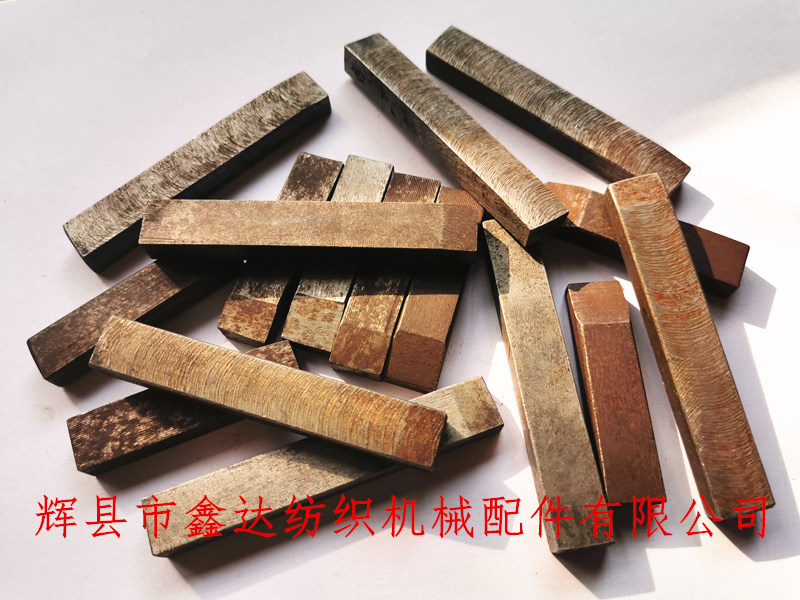

D17 textile key pin crank shaft gear key length is 75mm, width is 12mm, material: 45 steel, textile key pin plane slope is 1:100, on 1515 loom, D17 is connected with 3210 bending shaft; GA615 is connected with G1515-0212 crankshaft; 1511 and F38 crank shaft parts, D17 textile key pin installation success or not, will affect the use effect of D7 or 3210, unconventional error The installation method may damage the gear and cause cracks.
The thickness of D17 key pin (36 tooth wheel) tail is 7.6 mm, and the front thickness is 5.4 mm. The purpose of textile key nail in textile machinery: mainly used for fixing gear or driving wheel.
D17 key of loom, textile key pin, textile gear key are widely used and the quality is stable. There are complete specifications and types of shuttle loom key pin.
The material of key pin accessories of modern loom affects the service life and installation effect of accessories. Scientific installation steps and inspection methods are the basic conditions for correct installation. Traditional electric looms use about 10 staples per machine, with different specifications.
If you want to find textile key nail manufacturer, D17 loom key pin, D17 shuttle loom key pin, textile machine key pin production and processing enterprise, purchase loom key pin accessories, you can contact our company's relevant personnel according to the communication way, we sincerely welcome your presence!
