Textile Wooden Parts
Towel Wood Shuttle 343 Yarn Guide Shuttle
Towel Wood Shuttle 343 Yarn Guide Shuttle time:2022-08-14 14:50:51 click:12274 keywords:Wood Shuttle,Yarn Guide Shuttle,Towel Shuttle
description:

Huixian Xinda Textile Machinery Accessories Co., Ltd. is a manufacturer and processing manufacturer of yarn guide screw type shuttle (13.5 inches) of towel wood shuttle loom,Towel Wood Shuttle 343 Yarn Guide Shuttle, It provides customization and processing services for more than 60 kinds of textile wood shuttles such as yarn guide wood shuttle and towel shuttle. The overall dimensions of this yarn guide wood shuttle are: length 343mm, bottom outer width 45mm, height 35mm. Two curved steel wires are used for yarn guide in the front, and enamel type yarn guide screws are installed below.

343 yarn guide shuttle loom wooden shuttle_ Textile accessories_ Towel machine wooden shuttle

The included angle between the front part of the side of the towel wood shuttle and the arc-shaped cutting groove is 90 °, and the side is fixed with a pair of pin bolts to prevent the horizontal cutting groove from cracking after a long time of vibration. This shuttle is used with a weft bobbin with a length of 180mm.

13.5 inch yarn guide wooden shuttle_ Loom shuttle_ Textile shuttle equipment

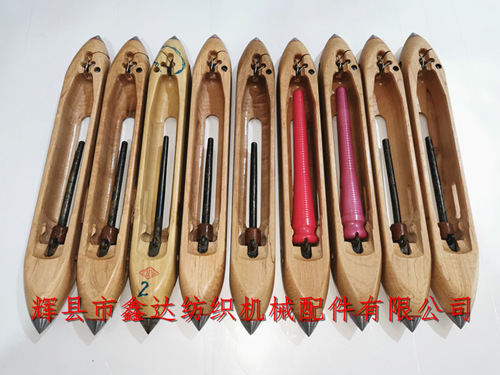

The blue number 2 in the above figure is the sample provided by the customer. The tube weft groove is square arc type. The customer requires that it be used with the red weft tube (ARC). The other four wooden shuttles are finished products after processing. The side of the loom shuttle has a probe slot,Wood Shuttle,Yarn Guide Shuttle,Towel Shuttle.

Wood shuttle factory processing custom_ Textile wood accessories_ Wood parts of loom

Wood shuttle manufacturers can process and customize according to the samples provided by customers, and some positions can be changed appropriately. This type of textile wood shuttle has no porcelain eyes and is made of compressed wood. It is suitable for the use of 1511, 1515 and GA615 full-automatic looms.

Manual loom wooden shuttle manufacturer

The wooden shuttle is packed in cartons, 50 pieces per box, with a minimum order of 300 pieces. The delivery period is about 40-50 days, and the weight of a single shuttle is about 0.38kg. If you need to buy Textile wood shuttle, yarn guide screw, loom shuttle, textile wood shuttle and other products, please contact Mr. Yang of our Xinda Textile accessories to negotiate the towel wood shuttle loom yarn guide screw shuttle (13.5 inches)!
