Huixian Xinda Textile Machinery Parts Co., Ltd. provides offset shuttle accessories, Eccentric shuttle Parts,Angle Mesh Shuttle Tip,Textile hardware angle net shuttle tip, small steel parts of textile machine, hardware parts. The shuttle tip is often installed at both ends of the loom shuttle, mainly used for the impact of textile leather knots, to provide stable shuttle picking force. The total length of this small shuttle tip is 38mm, the diameter of the angle net rod is 4mm, the length is 31mm, the diameter of the umbrella shaped cone bottom in the front of the shuttle tip is 8.5mm, and the height is 7mm, Install a shuttle tip on each end of each shuttle.

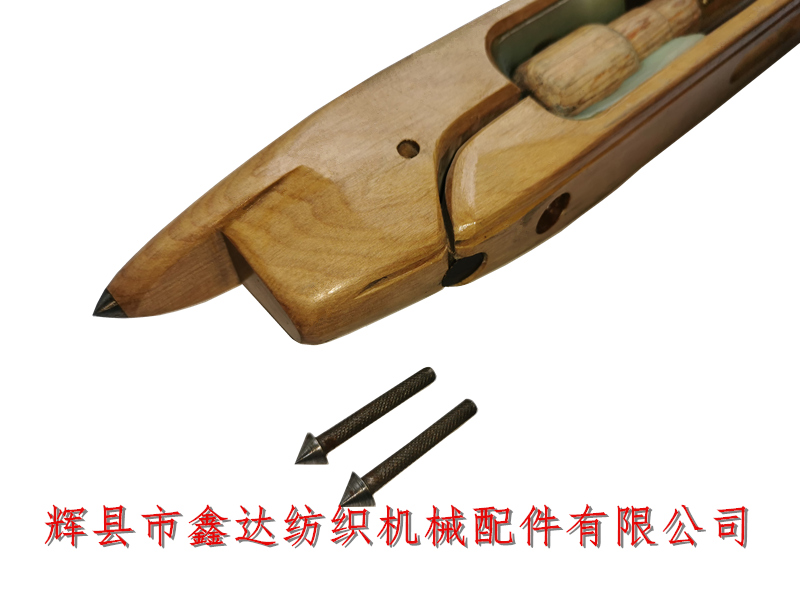

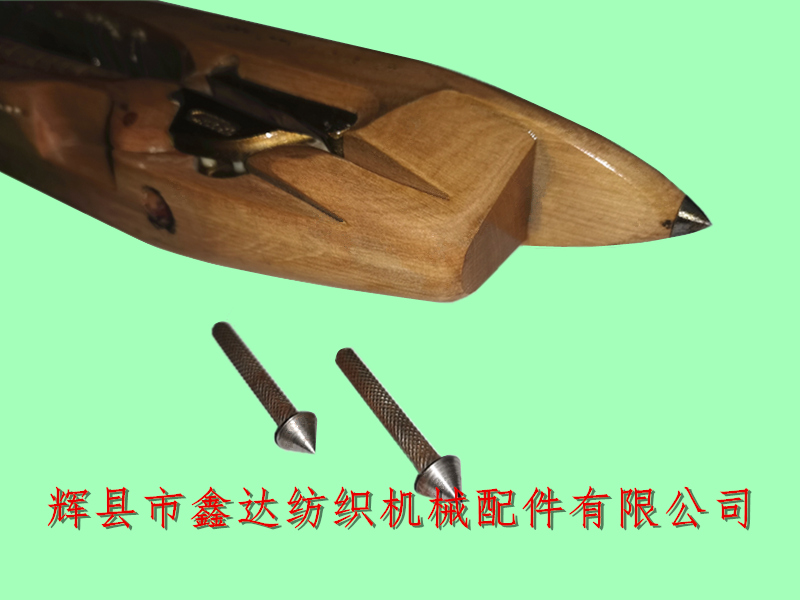

The slanted head shuttle in the above picture is a shuttle with an expansion opening, and the shuttle tip is installed on the outer side of the section. This shuttle tip is relatively small overall, and it is a small steel component in the category of shuttle accessories, belonging to the textile hardware category. In the process of producing shuttles, shuttle manufacturers usually first determine the length of the shuttle material, then process the shuttle tip hole, and install the shuttle tip after completion. The polishing of the shuttle tip is the final process, and there is no red steel paper buffer pad at the back of this small shuttle tip.

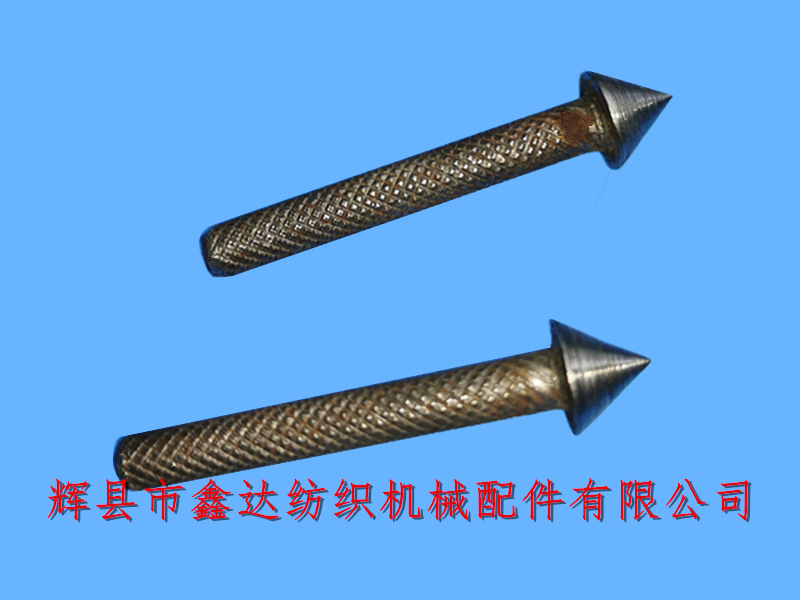

The angle mesh rod at the back of the hook tip is used to increase the tension and friction force after installing the hook tip, and to prevent the hook tip from falling. Generally, before the angle mesh screw of the hook tip is embedded into the wooden hook body, the hook will install a spring. When the angle mesh rod is embedded into the hook body, the wood and the inner ring of the spring will form compression, thereby causing the hook tip to be tightened and fixed.
The minimum order quantity for skewed shuttle tips is 100 pieces, packaged in transparent self sealing bags. Usually, the purchase quantity needs to be even, that is, sold in pairs; If textile enterprises or wooden shuttle manufacturers need to purchase products such as offset shuttle accessories, angle mesh shuttle tips, textile machine small steel parts, hardware components, etc., please contact Mr. Yang of our company for consultation! Welcome people from all walks of life at home and abroad to discuss cooperation matters!
