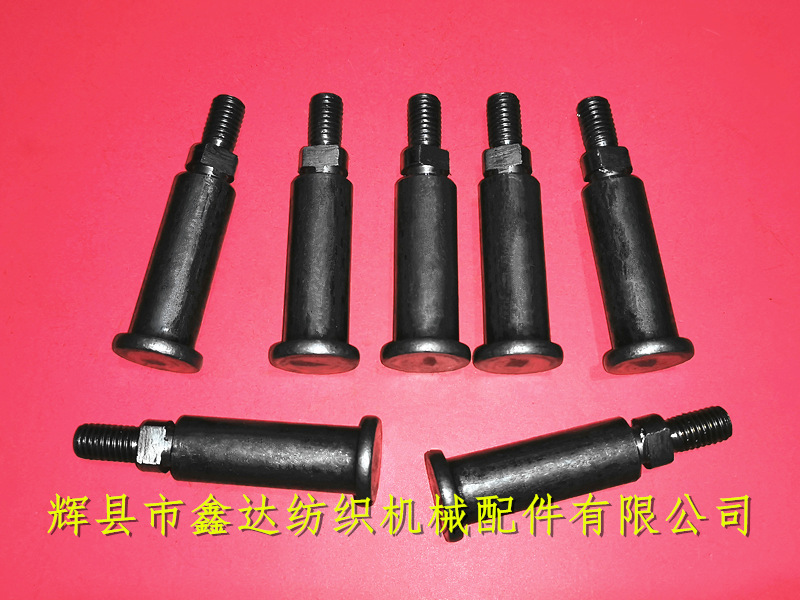

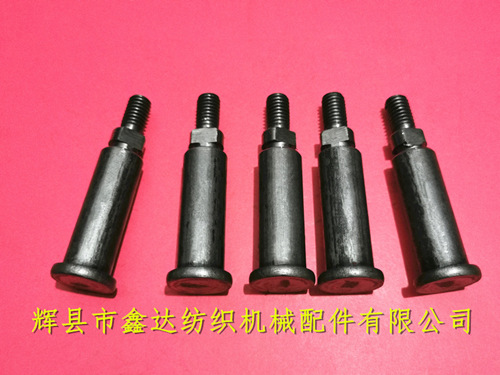

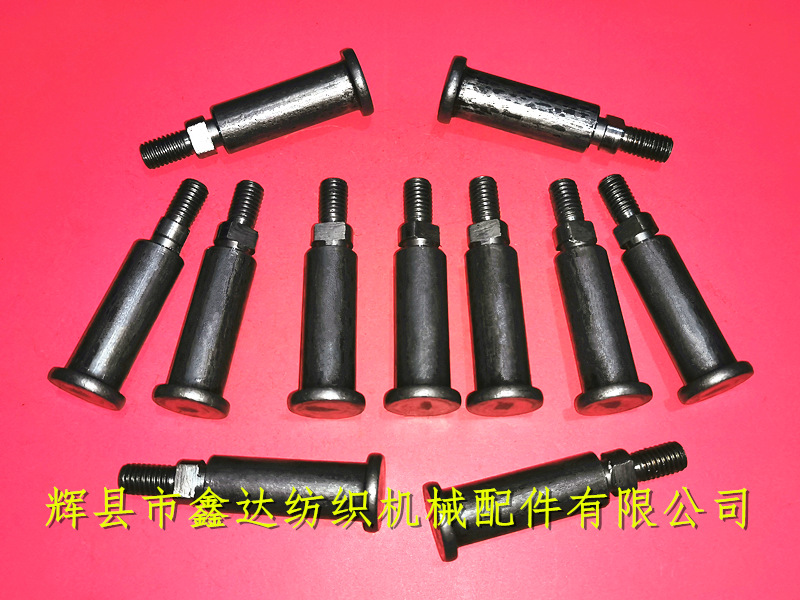

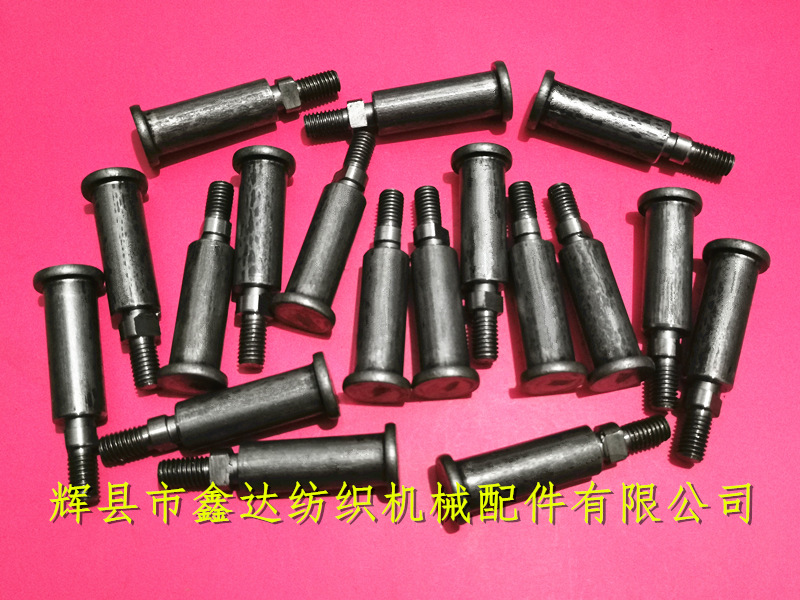

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides a screw core O22 for the combined rod of warp break and stop,Loom General Part Combined Rod Screw O22, a general accessory of shuttle looms. The total length of the spindle O22 of the loom is 63 mm, the diameter of the spindle main body is 13.8mm, and the length is 38mm. It penetrates into the inner hole of the tail of the O7 combined rod, and the diameter of the tail stopper of the spindle O22 is 19mm; The thickness of the front flat groove is 8mm, the diameter is 11mm, and the width is 5mm. The length of the front M8 threaded rod is 14mm, which is fixed on the hanging foot of the O10 combined rod; The combined rod screw core O22 of warp break and stop is a general accessory of 1511, GA615 and 1515 looms, and the quantity used on each loom is 1.
The screw core O22 of the loom warp break stop combined rod is connected with the O7 combined rod and O10 hanging feet on the 1511 loom; On the 1515 loom, it is connected with the combined rod feet 3613 and O7, and the GA615 loom is connected with the combined rod feet 3613 and 1515-7118.
The axis of the combined rod screw core O22 should be perpendicular to the plane of the combined rod hanger O10 or 3613, and the gap between the core O22 and the combined rod O7 (divided into left hand and right hand) should not exceed 0.4 mm. Because the loom is constantly improving a certain part with time, the basic accessories can be borrowed from each other (Universal).
The weight of a single O22 combined rod screw core is about 0.055kg. It is packed in transparent bags, with 50 pieces per bag and a minimum order of 100 pieces. If you need to purchase shuttle loom accessories, general loom accessories, warp break and stop parts, cloth machine combined rods and other textile accessories, please contact Mr. Yang of our company for details!
