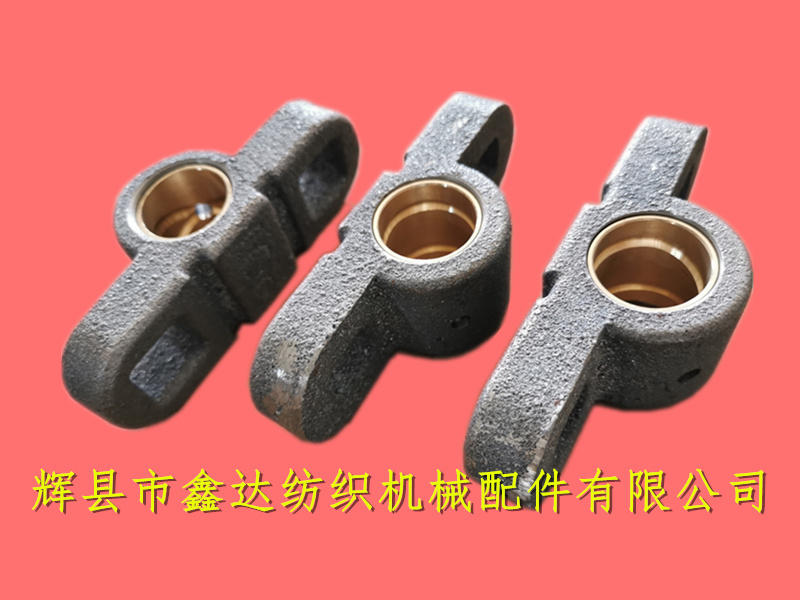

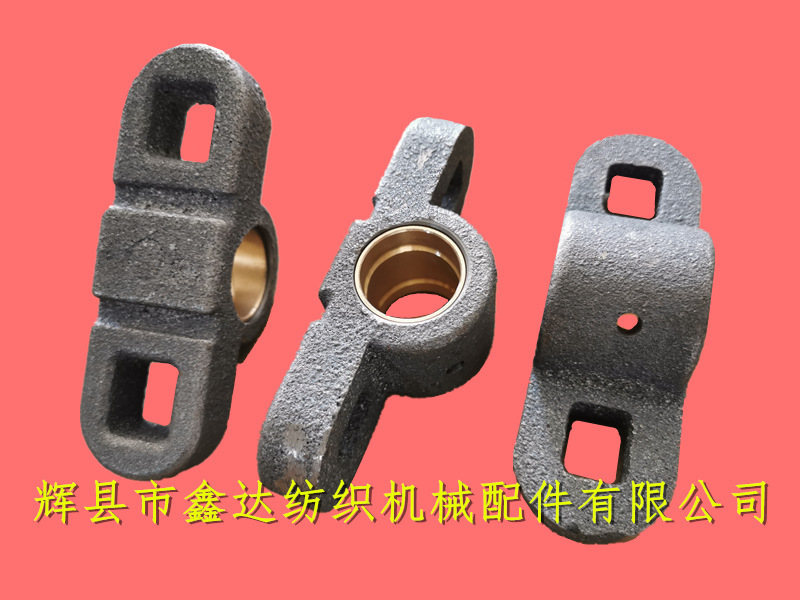

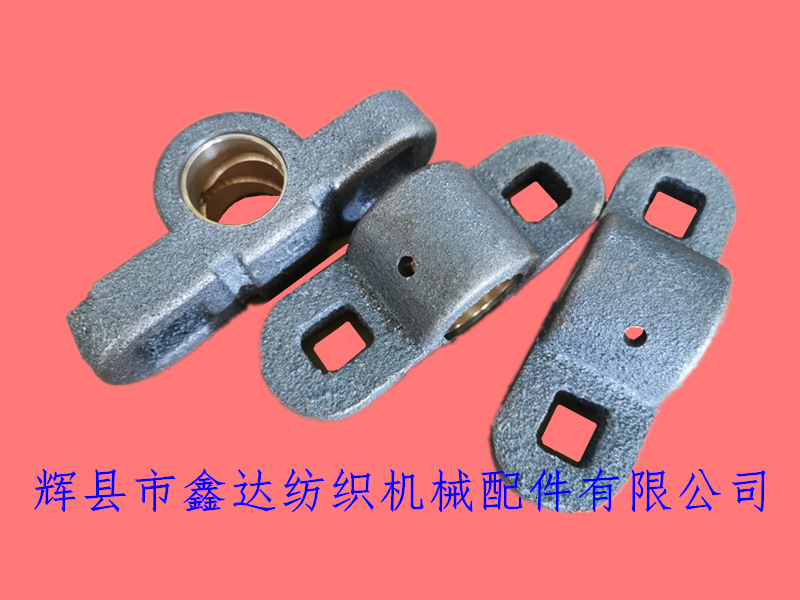

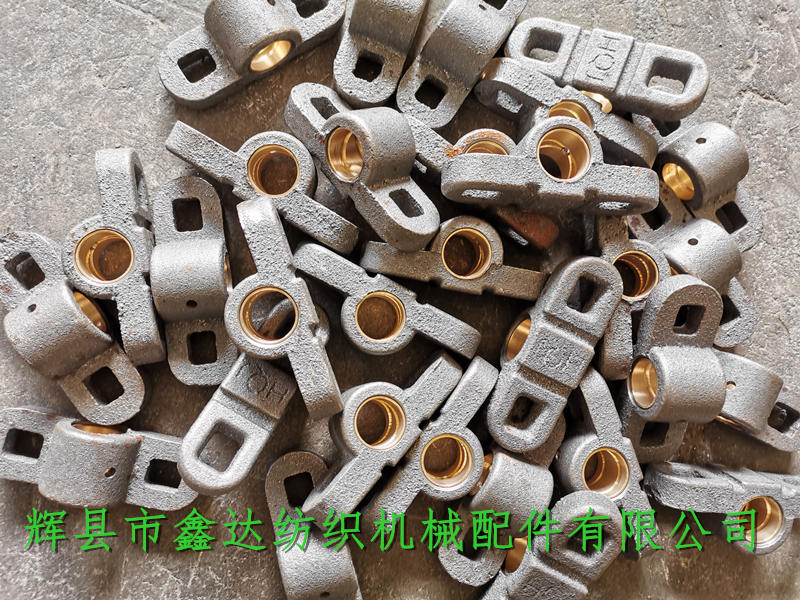

5100-5 Porcupline Roller Bracket is GA747 rapier loom parts. It is composed of 51106 copper sleeve and 5141 licker roller hanger. The inner hole of copper bushing is 25mm, and the center distance between the two fixing holes is 76mm. The G263z-51100-4 (GA615) carrier foot is connected with the loom wall panel 4301. The shuttle loom is installed on the side of shuttle shed. The English name of the part of textile rapier machine pricking roller is bracket for porcupine roller.
During the installation of licker roller hanger 5100-5, the journal clearance with the taker in roller combination 5100-2 is less than 0.4 mm. The accessory code of rapier made by GA747 Zheng textile machinery is different from that of Shanghai and Zhejiang. Attention should be paid to the part number conversion of accessories.Rapier Loom Parts,Porcupline Roller Bracket,Rapier Loom Bracket.
The rapier machine parts (coiling parts) include pressure cloth guide roller, pricking roller bulkhead, coiling brake assembly, cloth guide roller supporting foot, coiling transmission triangle, 5112 coiling angle groove arm, 5113 worm supporting foot seat, 5114 swinging rod supporting foot, 5127 coiling worm, 5128 coiling worm wheel, 5143 coiling support head and stay pin, etc.
Rapier Loom Modle 747 Parts Catalog clearly describes the shape and parameters of each rapier machine parts, including 0100 rapier frame components, 0300 transmission parts, 2600 weft insertion components, 2900 color selection components, 3100 beating up parts, 4400 let off parts, 5100 coiling parts, 5200 cloth winding parts, 5300 roller curling device, 7100 stop warp parts, 7200 weft stop parts, 7400 extension waste edge scissors parts, 7700 heald frame hemming structure, 8400 winding parts Bobbin frame assembly, 8600 opening part, 9000 electric box control, 9100 oil circuit components.
Xinda Textile machinery accessories to provide a variety of GA series rapier machine parts, 743 rapier loom accessories, 788 taker in roller components ,Porcupline Roller Bracket and other products, welcome to consult and discuss cooperation issues.
