The weft winding machine spindles are accessories of auxiliary equipment for weaving. They can be divided into 01 type and 02 type according to the length of spindle bars. They can be divided into 22 mm diameter and 24 mm diameter according to the size of spindle discs. They are mainly used as the carrier for weft winding of weft tubes. They are driven by the friction of spindle belts. The length of 01 type spindle bars is about 13.2-13.5 cm, and the length of 02 type spindle bars is about 15 cm, corresponding to the weft tubes of 01 and 02 types. Our company provides second-hand (old) spindles of various types of weft winders with supporting spindles, spindles hooks and other accessories, which have a short service life and will not affect the reuse.
The above figure shows the spindle of the 02 type weft winder. The inner cavity of the spindle base adopts needle roller bearings, the bottom has a spring to support the tail of the spindle bar, the thread of the spindle base is fine teeth, and the whole spindle also contains the corresponding fine teeth nuts. Weft Winding Machine Spindle Type 01 And Type 02.

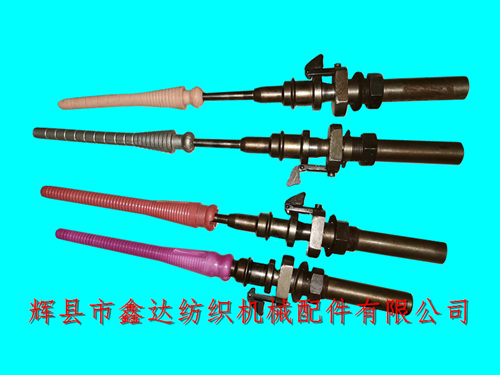

The model of weft tube in the above figure: purple is type 02, which fits well with the spindle. The two weft tubes above are used by foreign customers and do not fit with domestic type 01 and 02 spindles. The weight of a single set of 02 spindles is about 0.58 kg, and the total length is 34 cm. The outer diameter of the bottom of the spindle seat is 21 mm. The black nut is fine thread. The flat width of the position where the spindle hook is installed is 35 mm, and the diameter is 46 mm.
The number of weft winding machine spindles is set according to the length of the weft winding machine. Normally, the spacing between two adjacent spindles is the same. The materials of the 01 and 02 types of weft winding machine spindles are 45 # steel. The number of common weft winding machine spindles is generally 12 spindles - 200 spindles. The more spindles arranged on both sides, the longer the machine body.
The above figure shows the spindle of 01 type weft winder, and the spindle length is relatively short. In addition, there are D1206 spindles (rarely used for weft winding machines) and D1203 spindles (commonly used for spinning frames and twisting machines, with relatively thick spindles). The auxiliary mechanical equipment for weaving includes warping machine, weft curling machine, cloth coding machine, baling machine, etc. Their models are also diverse. Relatively speaking, some accessories of simple weft curling machine are different from the conventional ones.
To purchase textile spindles, weft reeling machine spindles, 01 spindles, 02 spindles and weft reeling machine accessories, please contact Mr. Yang of Xinda Textile Machinery Accessories Co., Ltd! The minimum order quantity is 50 sets, the new and old degree is 70% to 80%, the packaging is woven bag or wooden case, and the delivery time is 5-7 days.
