Huixian Xinda Textile Accessories Co., Ltd. provides various flexible (living Bell) shuttles for glass fiber silk weaving shuttles. The tail handles of common K72, K251, k274, k611 and other silk looms are short, because the weft of silk fabric is thin, the shuttle body design is small, and the width and height are smaller than the shuttles of Cotton Looms. The shuttles used in these looms have been added with anti weft shrinkage design, that is to say, they increase the flexibility of various types, The tail is controlled by a rubber band.

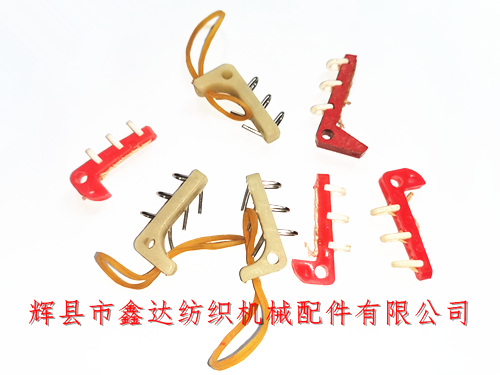

There are five kinds of living things in the above figure, of which four are made of nylon. Flexible Bell For Glass Silk Weaving Shuttle,The red living bell in the upper right corner is made of red steel paper (glass fiber), and the others are made of nylon and plastic. It can be seen from the pictures that there are obvious differences in their sizes.
The white porcelain rings used by them also have a variety of specifications, which can be distinguished according to the size and whether there are holes. In addition, there are single porcelain ring living bell and double porcelain ring living bell produced according to the requirements (the above figure shows the three porcelain ring living Bell). The packing method is self sealing bag, 50 pieces per bag.
The above figure shows the perforated porcelain ring, which belongs to glass fiber loom accessories and silk loom accessories, 1000 pieces / bag. They are generally installed on the glass fiber flexible made of red steel paper. The shuttle size is 343mm in length, 45mm in width and 35mm in height. The porcelain ring is a vulnerable part, mainly because when the flexible is pulled and reset by the rubber band, the machine fails or the weft tension is too large, and the porcelain ring will be damaged after colliding with the steel needle.
If silk manufacturers and glass fiber weaving factories need to purchase shuttle accessories, flexible, flexible bell, glass fiber shuttle, silk woven shuttle, flexible bell and other products, or obtain the detailed size of various flexible (flexible bell) for shuttle accessories, glass fiber silk woven shuttle, please contact Mr. Yang of our Xinda Textile accessories for negotiation, and welcome people from all walks of life to visit and guide!
