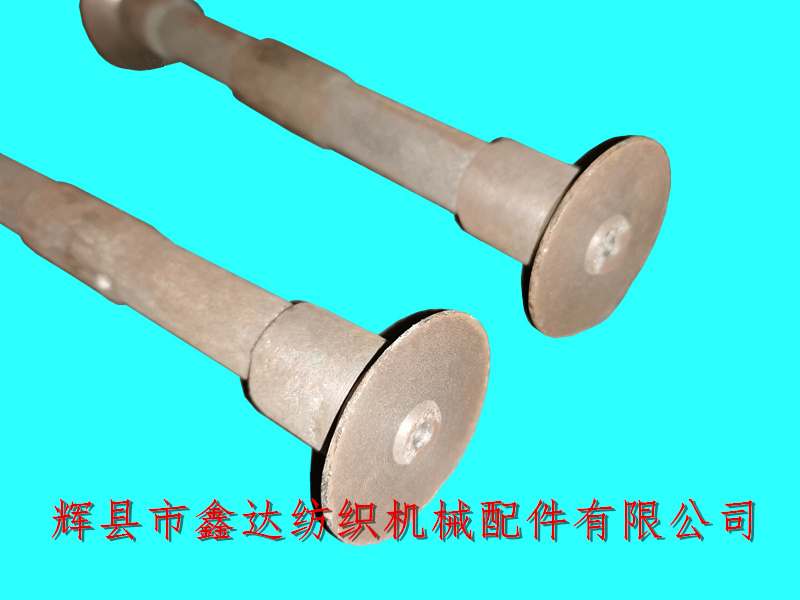

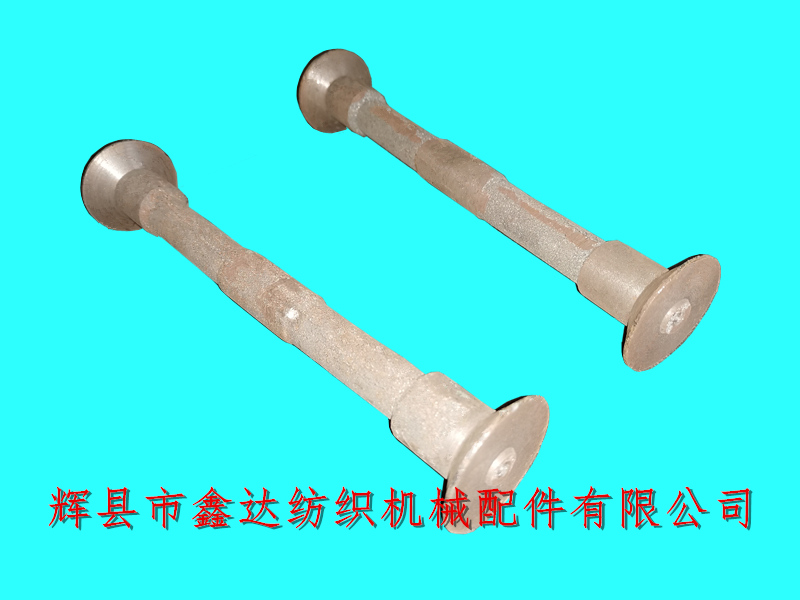

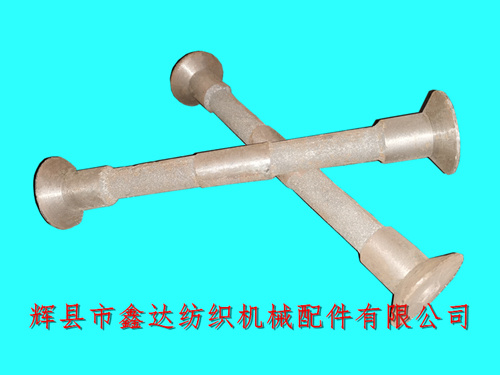

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides 1515 dobby loom accessory 5100-1 nail wood pressing roller. The total length of Dobby opening accessory 5100-1 is 240mm, which is connected with 5100-7 nail wood pressing roller guide rail on both sides. 1511 loom mostly adopts 1515 dobby device. The middle diameter of nail wood pressing roller is 22mm, the diameter of pressing roller on both sides is 25mm, and the material is pig iron HT15-33. Each loom uses one.
Below the dobby fitting 5100-1 of the textile machine is the staple wood. The t44 staple is arranged according to the fabric process requirements. The staple is planted on the staple wood 5115. Each staple wood has two rows of holes, and two rows of nails can be planted to form two shed openings. A group of nailed wood curtains (5100-13) are formed by connecting several pieces of nailed wood, which are converted with the rotation of the drum 5114. When the dobby opening mechanism completes two opening movements by means of the pull-down knife, the roller turns a piece of nail wood.
At this time, the previous row of nails T44 on the staple wood is located under the lower heavy tailstock 5112 without vertical needle T00-4, the pull-down knife 5125 starts to move towards the pull-down hook 5127 to form a primary shed, and the next row of nails is located just under the upper heavy tailstock 5111 with vertical needle, forming a secondary shed through the upper broach 5125, a multi arm loom accessory.
With the continuous conversion of staple wood 5115, the heald frame of the loom rises and falls in order to form a continuous opening. If you need to purchase 1515 nail wood, nail wood press roll, Dobby Nail Wood Pressing Roller 5100-1, dobby loom accessories, textile machine accessories and other products, please contact Mr. Yang of Xinda Textile accessories company for consultation!
