GA615 Shuttle Loom Parts
7209 Weft Detecting Component Head Impact
7209 Weft Detecting Component Head Impact time:2022-07-08 09:15:07 click:4231 keywords:Point Peck, Weft Probe, Head Impact
description:

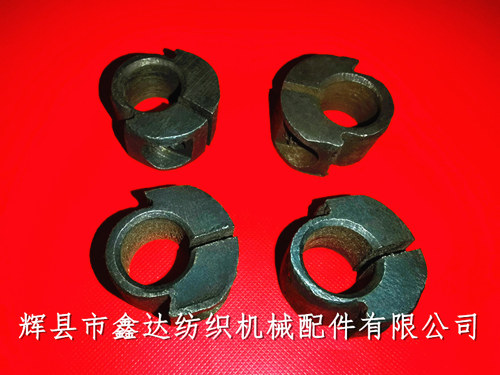

Huixian Xinda Textile accessories provides 72 series of point pecking weft detection parts, including 7209 Weft Probe Head Impact striker, 7210 middle casing rocker arm, 7207 inner casing nylon bushing, 7205 outer casing nylon sleeve, 7203 casing seat and other weft detection accessories. The 7209 Weft Detecting Component Head Impact is made of 45# steel, its outer diameter is 27mm, the inner hole diameter is 14mm, the thickness is 15.1mm, and the width of the tensioning expansion joint is 2mm. It is used in conjunction with 7200-2 inner casing.

Loom weft stop accessories 7209

The broken weft stop head (chicken head) supports the inner sleeve and collision head for mechanical detection of broken weft. The textile point pecking weft detection part is a set of mechanism that uses mechanical inspection of empty weft or broken weft, with relatively high sensitivity. It can be installed on the old shuttle looms of 1511, 1515, GA615 and other models. According to the different door width of the machine, the length of three wide sleeves increases, Other accessories are common except transverse parts. Head butting 7209, regardless of left and right hands, one for each set of looms.

Textile machine accessories 7209

The fixing hole in the upper left corner of the figure above is installed with M5 tightening screw, and the head support block 7215 pushes the step of 7209 (head impact). There are many kinds of textile hardware, small steel parts of loom and old textile accessories. They can be adjusted according to different needs of machinery and equipment, which is suitable for R & D and use by development institutions.

Loom weft stop accessories 7209

Textile point pecking weft detecting parts - needle pressing rod 7216, probe 7218, middle casing rocker pin 7221, compression spring 7217, coupling pin 7231, etc. all belong to small steel products of loom. The generation and manufacturing process is relatively complex, but the service quality and effect of the parts can be improved.

Point pecking chicken pecking rice accessories 7209 head butting

The point pecking weft detecting device is also known as "chicken pecking rice", which is called differently in various places. If you need to order 7209 point pecking weft detecting part head butting products, please contact Mr. Yang of Xinda Textile accessories.
