Huixian Xinda Textile Machinery Parts Co., Ltd. provides 13.5 inch three ceramic eye nylon shuttle_ Loom shuttle_ Xinda textile machine material, Xinda Textile Equipment,the shuttle tip adopts a detachable design, the number of white ceramic eyes: 3, the total length of this nylon shuttle is 343mm, the outer width of the shuttle bottom is 45mm, the height is 34.5mm, and the inner cavity width is 32.5mm. The nylon steel core shuttle column (shuttle shaft) is selected, and the tube weft slot is circular arc type, which is suitable for installing 180mm weft tubes (circular arc type and square arc type).

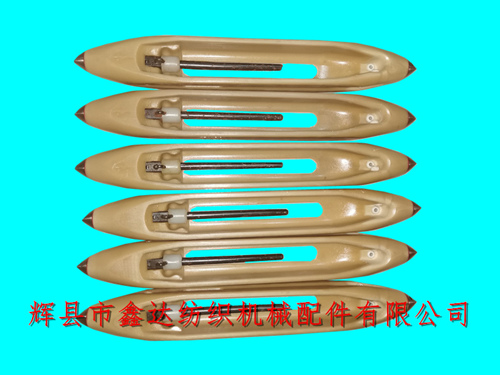

Three Ceramic Eye Nylon Shuttle For Loom,The three on the left side of the above figure are the left hand shuttle, and the three on the right side are the right hand shuttle. The ceramic eyes used in the shuttle are of three different specifications, with different diameters of 7.6mm, 6.8mm and lengths. Customers can use various threading methods according to their own needs. The difference between this shuttle and the spring yarn shuttle is that it can reduce the weft shrinkage, the shuttle body is smooth, and the small end shuttle has a good center of gravity. The same thing is that they are also suitable for automatic shuttle changing looms.
Loom shuttles can generally be divided into left hand and right hand. The angle between the outlet surface and the bottom surface of this nylon shuttle is 86.5 °. The left and right hands of the loom shuttle are mainly determined by the fact that the shuttle is closely attached to the back plate of the shuttle box to form a non right angle with the shuttle bottom (there are right angle shuttles in foreign countries). The common angle is 86.5 degrees (narrow up and wide down). In addition, there are 93.5 degrees (narrow up and narrow down), 88 degrees and other specifications. Please identify according to this.
Three ceramic eye nylon shuttle has the function of preventing weft shrinkage. It can increase the resistance when weft is drawn out by changing the weft drawing direction for many times. It is commonly used in the production of elastic materials and smooth materials. If you need to purchase nylon shuttle, shuttle, loom shuttle, nylon shuttle, Xinda textile machine materials and other products, please contact Mr. Yang of our company!
