The length of the fixed foot of the heald of Huixin Textile Co., Ltd. is 173.5mm, the length of the fixed foot of the heald (P5) is the fixed hole of the heald in the middle of the loom, and the length of the fixed foot of the heald (P5) is 186.5mm, which is the fixed foot of the heald of Huixin Textile Co., Ltd. in the middle of the heald hanging slot, and the length of the fixed foot of the heald (P5) is 186.5mm, Roughly horizontal.
44 textile machine accessory A1 heald rod hanging foot is an important part of plain tread plate opening device, which is used to fix a00-1 (short heald rod) and a00-2 (long heald rod). The material is gray pig iron HT15-33.
The hanging feet of 1511 A1 heald rod are left and right. The weight of a single hanging foot is 2.3kg, the total height is 87mm, and the width of the bolt fixing groove is 15mm. It is fixed with M12 * 40 semi-circular head square neck bolts (referred to as carriage screws).

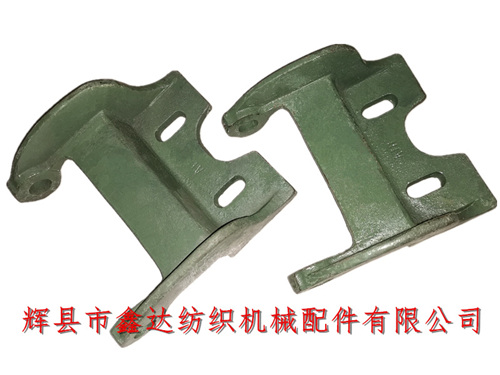

Each 1511 44 inch loom uses a loom hanger A1. The above picture shows the front and back of the heald hanger. The heald bar under the loom is mainly used for the up and down reciprocating movement of the heald frame, so as to form the shed.
The minimum order quantity of textile machine accessories, heald bar and loom hanging foot is 10 pieces. Textile machinery parts - A1 heald bar hanging foot is the frosted pig iron part of heald device. If you need to purchase textile machine accessories (hanging foot) and other products, or know the detailed heald bar hanging foot parameters, please contact Mr. Yang of our company!
