Huixian Xinda Textile Machinery Parts Co., Ltd. provides 1511 | 1515 | loom 3313 lifting back plate bottom wire K92 shuttle box steel wire all the year round,Textile Hardware Parts,The shuttle box back plate steel wire 3313 and K92 use 4.5mm diameter spring steel wire, and each loom uses one. They are connected with K208, Q6*Q7 or 3312*Q7. The total length of K92 is 41.4cm, while the total length of 3313 shuttle box lifting back plate bottom steel wire is 45.2mm.
The distance between the iron wire K92 at the bottom of the lifting back plate of the shuttle box and the bottom surface of the lifting back plates Q6 and Q7 is 38mm. Lift the lifting back plate so that the upper plane of the front brake rail K13 contacts the adjustment screw on the outer support foot K61. There is a vertical distance of 1.6-3mm between the upper surface of K92 and the K15 plane of the shuttle box bottom plate.
The 1515 type 3313 is connected to 3312xK208xQ7, and the GA615 type 6902 is connected to 2106xK208xQ7. The material is steel 70, and the distance between the bottom steel wire and the lifting back plate of the shuttle box is equal to the shuttle height+3mm. The two ends are parallel, and the upper part is 1.6-3mm lower than the 3308 plane of the shuttle box bottom plate (when the front brake rail is fully lifted).

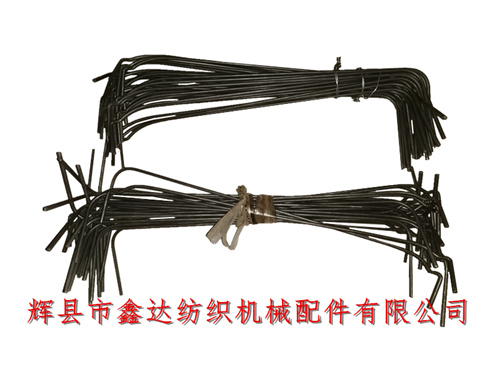

Textile hardware accessories - K92 and 3313 shuttle box bottom plate steel wires are packed in a bundle of 50. If you need to purchase shuttle box back plate steel wires with shuttle looms of 1511, 1515 and GA615 models, and loom 3313 lifting the bottom edge iron wire of back plate K92 shuttle box steel wires, please contact Mr. Yang of our company for consultation!
