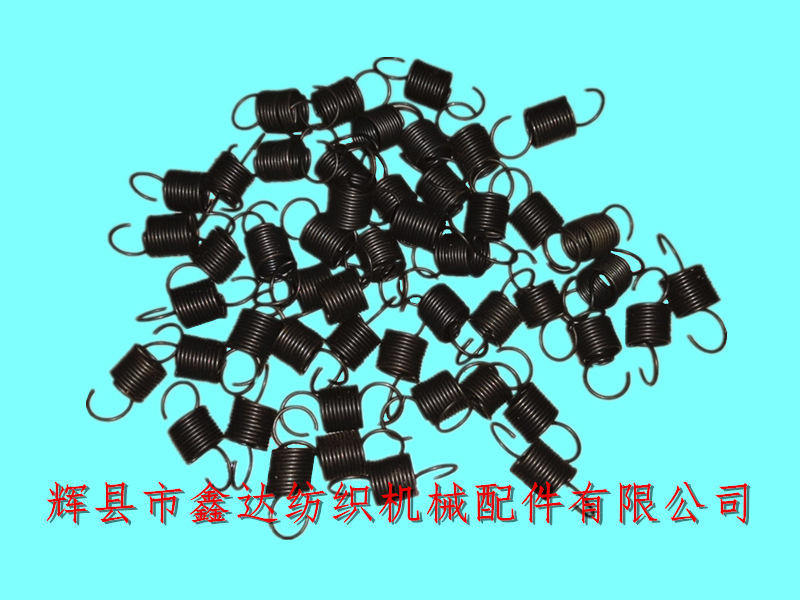

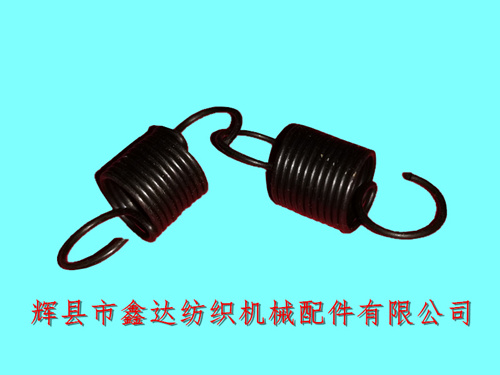

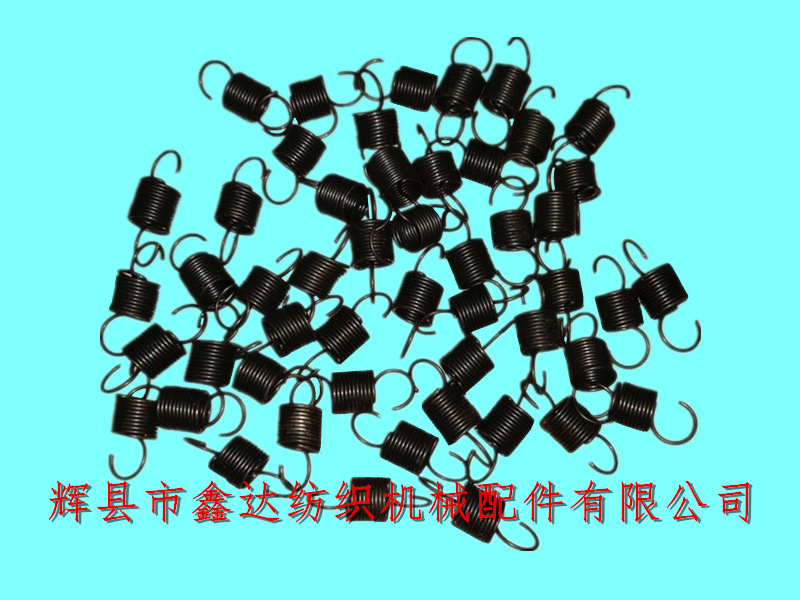

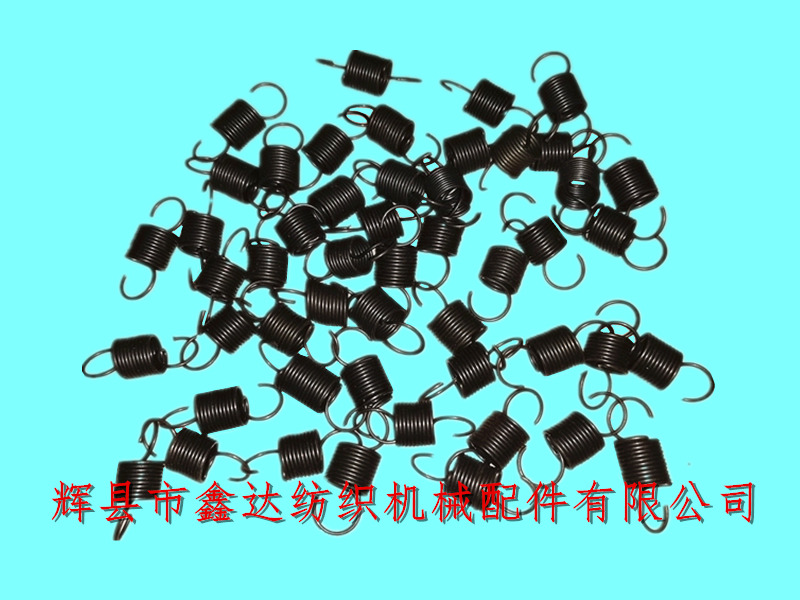

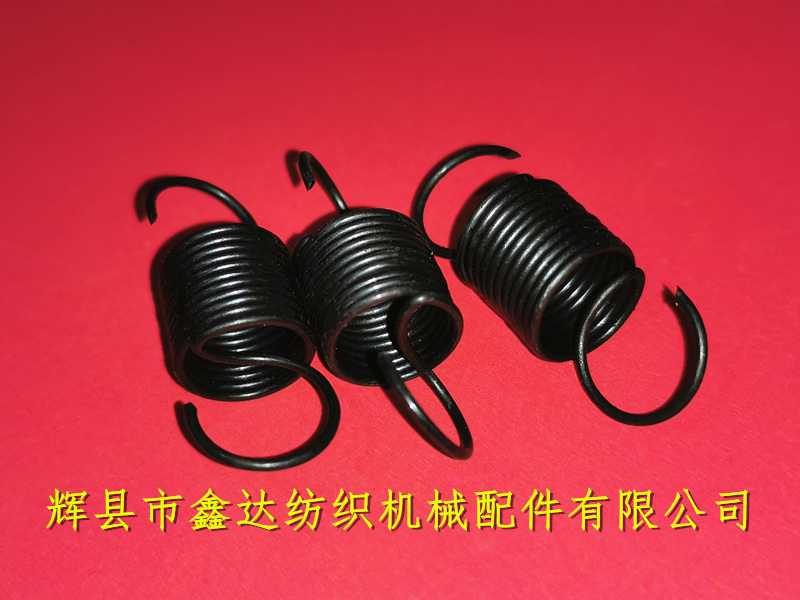

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides the loom start switch part I38 small coil spring, which is connected with the loom I51 iron wire ring and I11 belt fork. The I38 small coil spring is processed with 1.0mm diameter spring steel wire, the outer ring diameter is 12mm, the total length is 34.5mm, the spring body is wound for 10 cycles, the inner diameter of the spring hook at both ends is 10.5mm, and each loom uses one i38 small coil spring.
Installation method of textile Hardware Spring I38: install the brake release lever I11 (also known as belt fork) on the switch handle bracket I2, tighten the set screw, and install the small spring I38. The other end is hung on the core (i33) of the handle seat I29 or F220.
The switch arm connecting block F230 and the switch connector core F221 are bolted together in the round hole under the switch handle base F220. The switch connector core F221 penetrates into the front hole of the switch arm F213. When starting up, the switch connector core should be in the middle of the switch arm slot hole.
The main function of loom spring I38 is to assist the loom to stop and reset. Package: 100 pieces / bag. Although the starting and braking devices of 1511m automatic loom are slightly improved compared with 1511, I38 small coil spring is universal.
After the switch handle foot bracket is flush with the side of the switch handle bracket, tighten the screw, and fix the switch handle foot bolt with the set screw. If you need to purchase shuttle loom springs, 1515 switch parts, 1511 small coil springs, textile hardware accessories, please contact Mr. Yang of our company for consultation!
