Xinda Textile accessories provide 1515 loom heald bar, part number: 3100-6 products from the 3103 and 3122 bearings,and A00-3 rotor and 3102 heald lever,heald bar bolt connection,textile machinery accessories,weaving machine with cast iron, 4pcs/set,double tappet loom.

3103C material: HT15-33,3122 material: iron bearing or powder metallurgy, technical requirements: 3102 foot clearance and heald bar is less than 0.8mm, and the treadle rotor with the core of A6 is not allowed after loosening, groove difference before and after less than 0.4mm, and the lower shaft hook toe hook M41 sag depth is less than 3mm, in 3101 (foot seat, hanging foot) in transverse tolerance 0.8mm

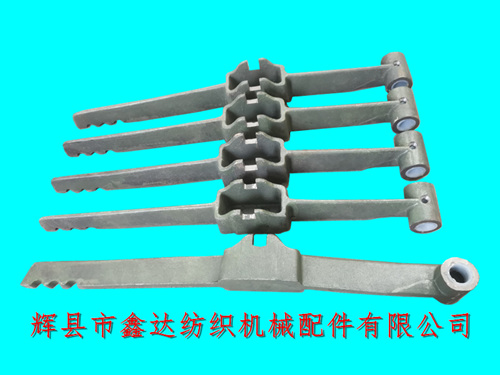

The 1511 type Treadle Heald Bar is divided into a long walking rod of 495mm and a short rod of 476mm. The 1515 type walking rod is not divided into long and short or left and right hands. The rotor and rotor core shaft are the same, both A00-3 (HT cold hard and nylon) and A6. Function: Mainly subjected to force and the rotation of the walking plate, thereby achieving the up and down movement of the walking frame and forming a fabric shuttle. Packaging: 5 pieces/bundle, 50 pieces/box,
