Textile Hardware And Tools

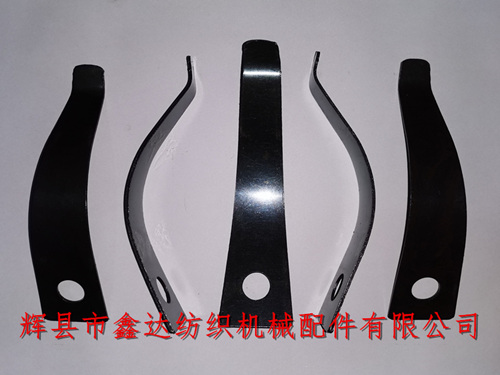

K54 Front Tongue Stop Pawl Spring
K54 Front Tongue Stop Pawl Spring time:2022-07-08 09:08:37 click:3707 keywords:Front Tongue Spring,Stop Pawl Spring, Loom Spring
description:

Huixian Xinda Textile machinery accessories provides K54 Front Tongue Stop Pawl Spring For Looms, including shuttle textile machine steel leaf spring. K54 leaf spring can be used on various door width looms of models 1511, 1515 and GA615. Its total length is 13.7 cm, width is 34.5 mm and narrow head is 17 mm. The steel leaf thickness of loom leaf spring K54 is 1.5 mm, round hole diameter is 14 mm, and each bundle of 40 K54 springs, The weight is about 1.75 kg.

Loom K54 spring

Weaving machine K54 leaf spring, also known as compression spring and steel spring, is connected with stop pawl hanging foot K21 or K22 to hold K23 stop pawl forward. Loom spring belongs to textile hardware products. Different shapes and sizes are related to dual parts.

Textile hardware K54 accessories

The material of loom K54 is 60Si2Mn steel sheet. Textile springs K52 (shuttle box spring on shuttle changing side), K53 (shuttle box spring on switch side), K47 (shuttle box back plate spring on shuttle changing side), K48 (shuttle box back plate spring on switch side), K55 (extension rod spring), K56 safety spring and K57 reed clamp spring play an important role in warp protection device of loom, At the same time, it can also stabilize the normal operation of the automatic shuttle changing system.

Textile equipment K54 leaf spring

If customers of textile enterprises need to purchase K54 leaf spring, K54 spring, K54 Front Tongue Stop Pawl Spring For Looms,loom leaf spring and other products, please contact Mr. Yang of our company. If you need to know the detailed parameters and price of loom K54 leaf spring stop stopper spring accessories, please contact our company by telephone!
