Huixian city Xinda Textile Machinery Accessories Co., Ltd. has long provided 343 wooden shuttle 13.5-inch three-porcelain-eyes shuttle oil-soaked compressed wood products. The overall dimensions of this product are: the total length is 343mm(13.5 inches), the external width of the shuttle bottom is 44.5mm, the height is 34.5mm, and the specification is 343 * 45 * 35 mm. There are three porcelain eyes in the front of the shuttle cavity, which is used to increase the yarn output resistance of the shuttle through various winding methods.

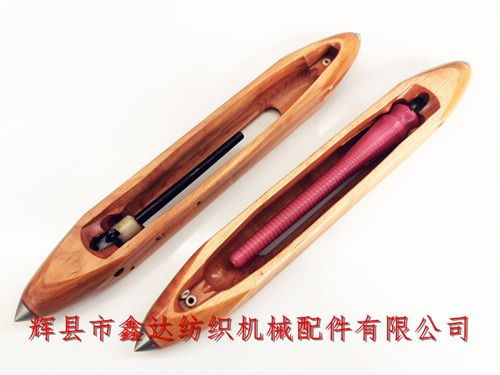

The above picture is the front and side view of the 13.5-inch shuttle, and the yarn guide groove and bottom groove on the side of the shuttle have been modified; Shuttle is divided into left and right hands, and it is distinguished according to the position of weft detecting groove on its side; Textile and wood products with the same shuttle have two porcelain eyes and three porcelain eyes. They are generally based on the weft tube with a length of 18 cm.
There are two porcelain eyes on the bottom of the shuttle, one is perpendicular to the bottom of the shuttle, and the other is at an included angle of 45 degrees with the bottom of the shuttle. This shuttle is 13.5-inch circular arc, and straight neck weft tube and circular arc weft tube can be used.
The porcelain eye shuttles are packed in cartons, each containing 50 PCS. The weight of a single wooden shuttle is 0.39 kg, and the shuttle clamp is an angle mesh non-detachable shuttle clamp. The minimum order quantity is 300 pieces, and the delivery period is 30-35 days.
