Huixian Xinda Textile Machinery Accessories Co., Ltd. provides various types and specifications of shuttle loom (crank shaft, bending shaft) F40 of various specifications. Fender Stay F40 Shuttle Loom (Crank Shaft),The overall span of the bending shaft bracket is 46.5 cm long, 27 cm wide and 9 cm thick. The middle two horizontal holes are used to fix the bending shaft support feet, and the upper and lower holes beside are used to fix the starting arm support feet (F208 and 4115). The weight of a single F40 is about 4.65 kg.

The F40 bending shaft bracket of textile machinery accessories is connected with the crankshaft side bracket F41. Previously, F40Y was integrated design. Due to the strict requirements of F40Y forming process and high blank damage rate, it was later changed to combined design, which not only reduces the installation difficulty, but also increases the support strength.

One textile accessory F40 is used on each loom, which is installed on the outside of the crank gear (pinion D7, 3210) of the loom, and the fixed screw is M12 half round head square neck screw (referred to as carriage wire). The cast iron of shuttle loom is the main part of shuttle loom parts, and the material is generally gray iron, which has the characteristics of good toughness, easy fracture and welding, and little damage to other dual parts.

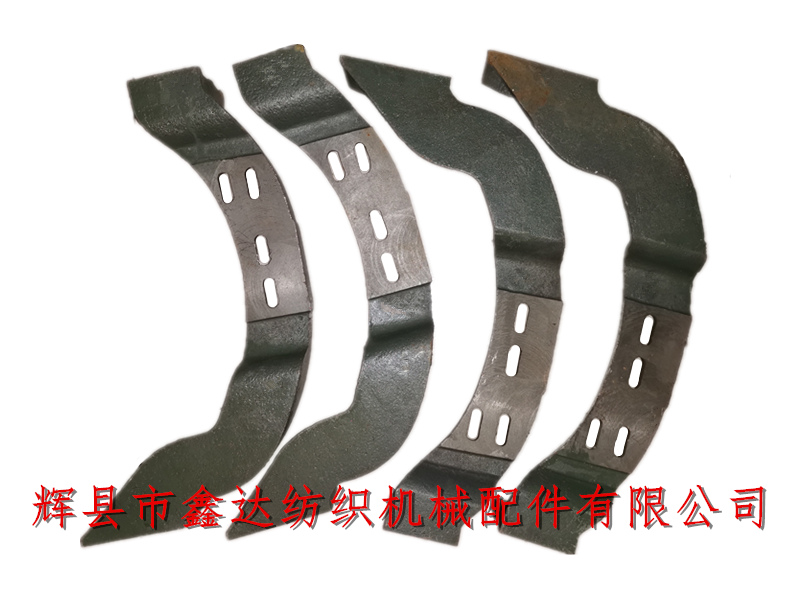

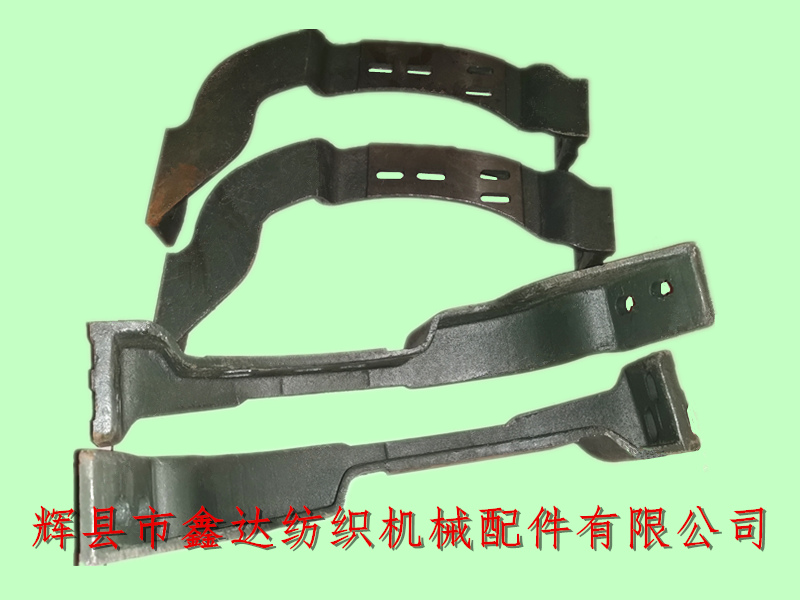

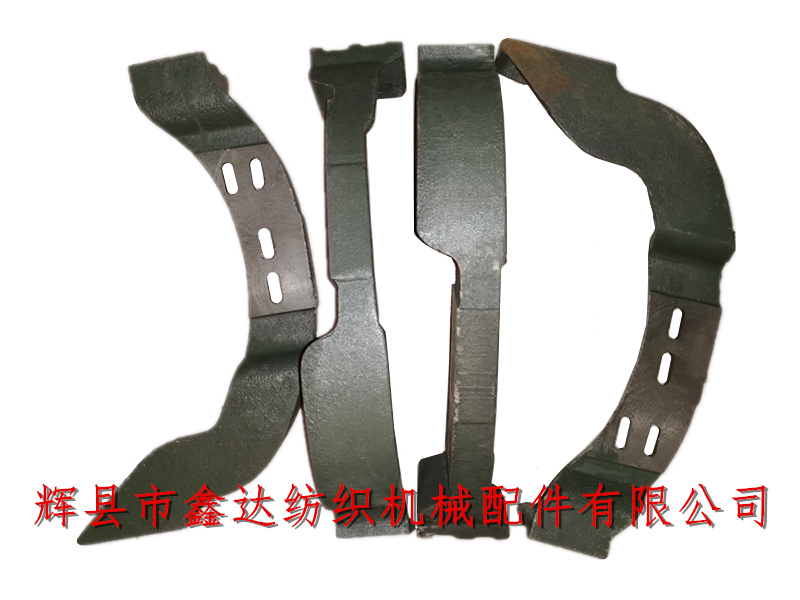

F40 points left and right hands.Fender Stay F40 Shuttle Loom (Crank Shaft), In the picture above, there are two pairs, the top one is left hand, and the bottom two are right hand. Please contact Mr. Yang of our company for detailed parameters of F40 support of shuttle loom (crank shaft and bending shaft). Textile mills in all cities are welcome to purchase this type of shuttle loom accessories, loom bracket, bending shaft bracket and accessories.
