Huixian Xinda Textile Machinery Parts Co., Ltd. provides textile accessories products - textile electrical accessories P7100 single hole weft sensor. The part number of the SFW weft sensor is 911321038, which is applicable to Sulzer PU type P7100 projectile loom in Switzerland. The overall dimensions of the sensor are: length 26.7mm, main body thickness 20mm, total thickness (including ceramic chips) 23.6mm, main body square height 25mm, total height 44.7mm, The inner width of the upper fixed chute is 5mm and the inner length is 10mm.

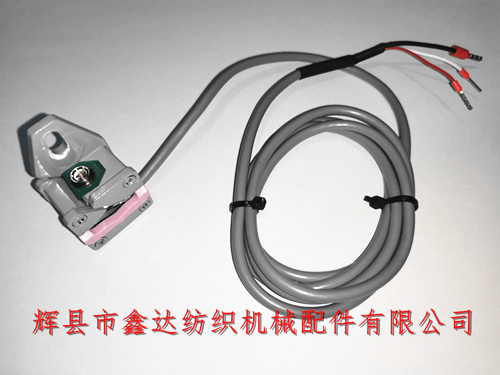

As shown in the figure 911.321.038, the main line of the weft passing sensor is three cores, with a length of approximately 1.2 meters. Textile Electrical P7100 Loom Weft Sensor, The Sulzer projectile loom has various sensors that are designed and installed for different parts.
The side of the single hole sensor is shown in the above figure, with two aluminum oxide shaped porcelain plates on each side, and a white guide porcelain plate in the middle inside. Textile electrical products belong to textile equipment, and during the maintenance process of the shuttle machine, it is necessary to check the voltage situation of each circuit.
The above image is a top view of the 911321038 weft sensor. A screw is fixed above, and a green V-shaped plastic paddle is pressed below the screw to prevent the weft from coming out of the inner cavity of the weft sensor during linear motion.
The individual weight of this shuttle sensor is 74 grams and is packaged separately, as shown in the above figure. The minimum order quantity for 911.321.038 sensors is 5 pieces. Textile enterprises in various cities are welcome to consult and negotiate cooperation on textile electrical accessories and P7100 single hole shuttle weft sensor.
